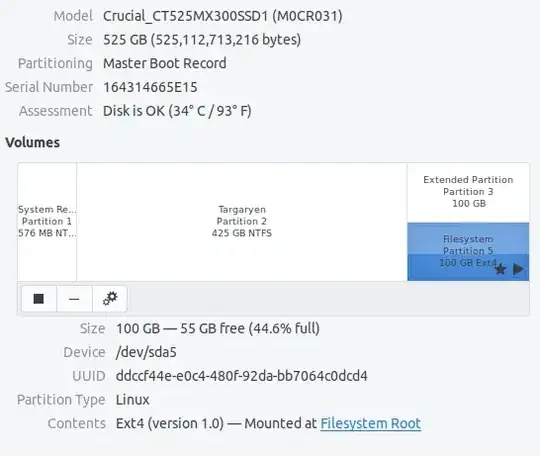

I use a 525 GB drive that's dual booted with Ubuntu 18.10 and Windows 10. My Windows partition should be 425 GB and my Ubuntu partition should be 100 GB, but I see two non-NTFS entries:

  • One says Extended (Contents: Extended)
  • One says Linux (Contents: Ext4)

Both volumes say 100 GB, so I am confused what the difference between the two are. I'm thinking they can't be independent volumes, since then the numbers wouldn't add up to 525 GB.

enter image description here enter image description here

Community
  • 1
almk
  • 91
  • 1
    Possible: https://askubuntu.com/questions/151968/what-does-the-term-extended-partition-mean-is-it-safe-to-use-this-type-of-par You are seeing an Extended Partition with a Logical Partition (ext4) contained within. It is not a duplicate partition but a container type to extend beyond the 4 Primary Partition limit of a MBR partitioning scheme. – Terrance Mar 10 '19 at 05:29

1 Answers1

0

@Terrance. Thank you, that gave me the information I was looking for.

An extended partition is a special container type that allows for more partitions than the maximum four allowed by a traditional partition table. It can hold multiple logical partitions. An operating system (such as Ubuntu) can be installed on either a primary or logical partition.

This installation just created an extended partition and installed on a logical partition, to allow for future partitioning if needed.
