HPLIP 3.19.6 didnt see USB HP LaserJet Pro MFP M125ra on 18.04

Question

Problem: MFU works like printer but didn't work like scanner.

Installed latest HPLIP Version: 3.19.6 from developers.hp.com.

:~$ hp-setup

hp-doctor command output:

------------------------------
| DISCOVERED SCANNER DEVICES |
------------------------------

No Scanner found.

--------------------------
| DISCOVERED USB DEVICES |
--------------------------

No devices found.

---------------------------------
| INSTALLED CUPS PRINTER QUEUES |
---------------------------------


HP-LaserJet-Pro-MFP-M125ra
--------------------------
Type: Unknown
Device URI: usb://HP/LaserJet%20Pro%20MFP%20M125ra?serial=CNB7GCJHZQ&interface=1
PPD: /etc/cups/ppd/HP-LaserJet-Pro-MFP-M125ra.ppd
warning: Failed to read /etc/cups/ppd/HP-LaserJet-Pro-MFP-M125ra.ppd ppd file
PPD Description:
Printer status: printer HP-LaserJet-Pro-MFP-M125ra is idle.  enabled since Чт 06 июн 2019 17:54:40
warning: Printer is not HPLIP installed. Printers must use the hp: or hpfax: CUPS backend for HP-Devices.


--------------
| PERMISSION |
--------------

error: Unsupported model: HP_LaserJet_Pro_MFP_M125ra


Checking Permissions....


Checking for Configured Queues....
warning: Fail to read ppd=/etc/cups/ppd/HP-LaserJet-Pro-MFP-M125ra.ppd file
warning: Insufficient permission to access file /etc/cups/ppd/HP-LaserJet-Pro-MFP-M125ra.ppd
warning: Could not complete Queue(s) configuration check


Checking for HP Properitery Plugin's....
No plug-in printers are configured.

Diagnose completed...

lsusb command output:

Bus 002 Device 009: ID 03f0:222a Hewlett-Packard

sane-find-scanner command output:

  # sane-find-scanner will now attempt to detect your scanner. If the
  # result is different from what you expected, first make sure your
  # scanner is powered up and properly connected to your computer.

  # No SCSI scanners found. If you expected something different, make sure that
  # you have loaded a kernel SCSI driver for your SCSI adapter.

found USB scanner (vendor=0x03f0 [Hewlett-Packard], product=0x222a [HP LaserJet Pro MFP M125ra]) at libusb:002:009
could not open USB device 0x04d9/0x0175 at 002:006: Access denied (insufficient permissions)
could not open USB device 0x2109/0x2812 at 002:004: Access denied (insufficient permissions)
could not open USB device 0x0001/0x0000 at 002:003: Access denied (insufficient permissions)
could not open USB device 0x8087/0x0024 at 002:002: Access denied (insufficient permissions)
could not open USB device 0x1d6b/0x0002 at 002:001: Access denied (insufficient permissions)
could not open USB device 0x1d6b/0x0003 at 004:001: Access denied (insufficient permissions)
could not open USB device 0x046d/0xc52b at 003:003: Access denied (insufficient permissions)
could not open USB device 0x0461/0x0010 at 003:002: Access denied (insufficient permissions)
could not open USB device 0x1d6b/0x0002 at 003:001: Access denied (insufficient permissions)
could not open USB device 0x8087/0x0024 at 001:002: Access denied (insufficient permissions)
could not open USB device 0x1d6b/0x0002 at 001:001: Access denied (insufficient permissions)
  # Your USB scanner was (probably) detected. It may or may not be supported by
  # SANE. Try scanimage -L and read the backend's manpage.

  # Not checking for parallel port scanners.

  # Most Scanners connected to the parallel port or other proprietary ports
  # can't be detected by this program.

  # You may want to run this program as root to find all devices. Once you
  # found the scanner devices, be sure to adjust access permissions as
  # necessary.

Printer work without hplip setup.. How to make the scanner work?

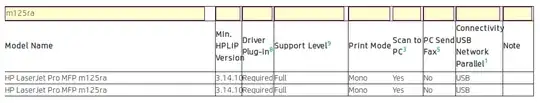

It looks like your Printer is not supported in HPLIP version 3.19.6. Based on this https://developers.hp.com/hp-linux-imaging-and-printing/supported_devices/index you need HLIP version 3.14.10. — kannzzmm2, Jul 11 '19 at 22:50
Yea, but when i try run hplip-3.14.10.run i get hplip-install: line 2: python: command not found. Looks like it use old python in installer. — slava, Jul 12 '19 at 11:31
In this table https://developers.hp.com/hp-linux-imaging-and-printing/supported_devices/index means just Min. HPLIP Version. Looks looks like all highest versions must support my printer model. — slava, Jul 12 '19 at 11:36
you can't install hplip-3.14.10 with hplip-install. You need to go to Downloads folder and then run sudo chmod a+x hplip-3.14-10 and then ./hplip-3.14.10.run. Yes you're right, but the hp-doctot command gives you the output error: Unsupported model. ... — kannzzmm2, Jul 13 '19 at 08:44
sudo chmod a+x hplip-3.14.10; ./hplip-3.14.10.run return error: Creating directory hplip-3.14.10 verifying archive integrity... All good. Uncompressing HPLIP 3.14.10 Self Extracting Archive... .... ./hplip-install: line 2: python: command not found — slava, Jul 14 '19 at 12:22
post the output of the whole terminal process when you run the ./hplip-3.14.10 — kannzzmm2, Jul 14 '19 at 12:59
@MitKan, Here http://sflash.biz/askubuntu/hplip-terminal.html — slava, Jul 14 '19 at 14:52

score 3 · Answer 1 · edited Jul 18 '19 at 22:19

3

According to the official HPLIP page you need to install at least 3.14.10 with a proprietary plugin:

It seems that you have missed the installation of this binary/proprietary driver/plugin.
You have to install it with:

hp-plugin

Note: You do not really need HPLIP 3.19.6 and can use HPLIP 3.17.10 from the bionic repository. To proceed this way follow the uninstallation part of my other answer and afterwards install the plugin with hp-plugin.

References:

edited Jul 18 '19 at 22:19

Fabby

34,259

answered Jul 18 '19 at 09:43

N0rbert

99,918

1

I wish I could upvote twice! ;-) – Fabby Jul 18 '19 at 22:19
Finally installed HPLIP 3.17.4 with plugin, printer founded with scanners apps but xsane return:http://sflash.biz/askubuntu/img/hplip-errors.png – slava Jul 23 '19 at 17:37
My MFP sometimes do not want to scan on first attempt, but scans normally on next attempt :) Please make sure that you have ran hp-plugin. About tray - make sure you have added Indicator Applet (or Indicator Applet Complete) to the panel (here I mean MATE Panel, not sure about GNOME). – N0rbert Jul 23 '19 at 20:19
I lost hope. hp-plugin installed. Simple Scan see MFP, but return error. XSane return: Failed to open device hpaio:/usb/HP_LaserJet_Pro_MFP_M125ra?serial=CNB7GC': Error during device I/O. MFP work like printer. Scanner worked before, I just reinstall Ubuntu on same release. – slava Jul 25 '19 at 18:20

score 1 · Answer 2 · answered Jul 19 '19 at 01:40

1

Maybe this helps a little bit more :

sudo hp-setup

instead of

hp-setup

Before this, you should better repeat installation of hp-package with :

sudo apt install --reinstall hplip

I guess, this works out.

answered Jul 19 '19 at 01:40

dschinn1001

3,829

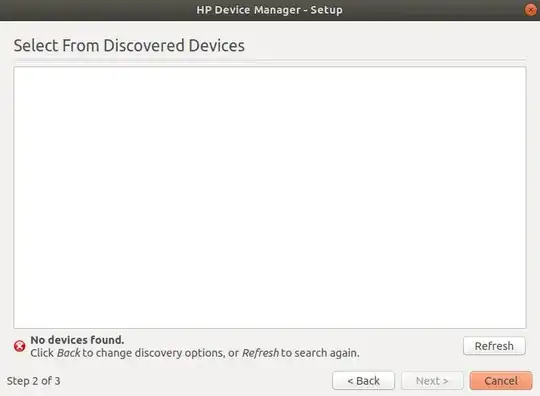

sudo hp-setup: error: No devices found on bus: usb, reinstall isn't help – slava Jul 23 '19 at 16:39
@mature - seems to be matter of USB port or USB cable is broken? – dschinn1001 Jul 23 '19 at 17:55
the printer part print perfect – slava Jul 23 '19 at 18:06
@mature - it seems to be a driver issue from HP. There is a link with more precise solution : https://askubuntu.com/questions/1087686/hp-printer-and-scanner-installation – dschinn1001 Jul 25 '19 at 12:24
@mature - if still unsolved you should post this at HP in their forum. – dschinn1001 Jul 25 '19 at 12:25

score 1 · Accepted Answer · answered Jul 30 '19 at 17:45

1

Fixed with install HPLIP-3.17.9

All steps answers default except: It will ask if would you like to have this installer install the hplip specific policy/profile. Type ‘y’.

Done: Scanner and Printer works!

answered Jul 30 '19 at 17:45

slava

3,887

score 1 · Answer 4 · edited Apr 22 '20 at 13:58

1

In hplip-3.17.11 support of m125ra is dropped.

In newer hplip version - select M125a model for printing.

For scanning - open in text editor /usr/share/hplip/data/models/models.dat, find section [hp_laserjet_pro_mfp_m125a] and copy it to [hp_laserjet_pro_mfp_m125a] or rename.

edited Apr 22 '20 at 13:58

Gryu

7,559
9
33
52

answered Apr 22 '20 at 13:19

Andrey Jr. Melnikov

11

1

Please, better explain where to copy or what to rename. It is not clear. If we found [hp_laserjet_pro_mfp_m125a] section than what we need to copy and where? The whole section? Ok. Which file should be edited we should place that section to? – Gryu Apr 22 '20 at 14:02
Whole section, place it after [hp_laserjet_pro_mfp_m125a] – Andrey Jr. Melnikov Apr 23 '20 at 14:53
It's still does not clear which file should be modified. As I see, we should have two files. One file contains lines we should copy, another file should be modified by pasting copied section. /usr/share/hplip/data/models/models.dat is the first file. What is the second file? – Gryu Apr 23 '20 at 15:55
Same models.dat. – Andrey Jr. Melnikov Apr 25 '20 at 08:22
