I had an accident, and my laptop with me. As a result, I have sore rib, and my laptop has a sore screen: the rightmost ~25% of my laptop's built-in display does not display anything, from top to bottom.

How do I convince Ubuntu that my display is only as large as the working part - about the left 75% of the screen?

I had managed to generate a modeline using cvt, and then to use it with xrandr (using info from here and here), however, that unfortunately made Ubuntu pretend the left side of my screen wasn't working, rather than the right side, which made the situation worse.

I've tried to move the area where the screen is shown using the --pos flag for xrandr --output (for example, as a test I ran xrandr --output eDP-1 --mode 1504x1080 --pos 100x100, but the values I enter for the --pos flag do not seem to have any effect.

Yes, it might be time to buy a new laptop (or at least a screen), but I'm currently travelling and need to make this laptop work for at least a few months. Thanks for your help!

EDIT:

Here is more information on what I've tried.

Step 1: Generate a modeline with the desired resolution:

$ cvt 1440 1080
# 1440x1080 59.99 Hz (CVT 1.56M3) hsync: 67.19 kHz; pclk: 129.00 MHz
Modeline "1440x1080_60.00"  129.00  1440 1528 1680 1920  1080 1083 1087 1120 -hsync +vsync

I can successfully set this as the output using xrandr. This just lowers the resolution, though - what I need to do is actually shift the final output to the left.

Following instructions from here and here, I think I should be able to do that by setting the horizontal back porch to zero to indicate that there should be no blank pixels on the left side of the screen.

This should be done by adjusting the third and fourth number in my modeline, resulting in this one:

Modeline "1440x1080_60.00_p240"  129.00  1440 1768 1920 1920  1080 1083 1087 1120 -hsync +vsync

Setting that as the output mode via xrandr made the screen flicker badly before stopping working.

Interestingly, I also tried this modeline, which I thought would reduce the back porch to just 40 pixels:

xrandr --newmode "1440x1080_60.00_p200"  129.00  1440 1728 1880 1920  1080 1083 1087 1120 -hsync +vsync

...but this did not shift the output at all, but neither did it result in flickering. The result looked exactly as with the original modeline I'd generated (that wasn't supposed to be shifted at all).

Anyone understand what's going on?

Staring Frog
  • 232
  • 3
  • 11

3 Answers3

4

Work Around

you can achieve this with xrandr with the help of --fb --panning which you missed in your workout..

below are the working commands when I did it my system which are self explanatory..

my Original Screen Resolution is 1366x768 (eDP-1) and I tried to use 1000x768 leaving the blank space on Right

cvt 1000 766
xrandr --newmode BROKEN 62.00  1000 1056 1152 1304  766 769 779 796 -hsync +vsync
xrandr --addmode eDP-1 BROKEN
xrandr --output eDP-1 --fb 1000x766 --panning 1000x766 --mode BROKEN
xrandr --fb 1000x766 --output eDP-1 --mode 1366x768

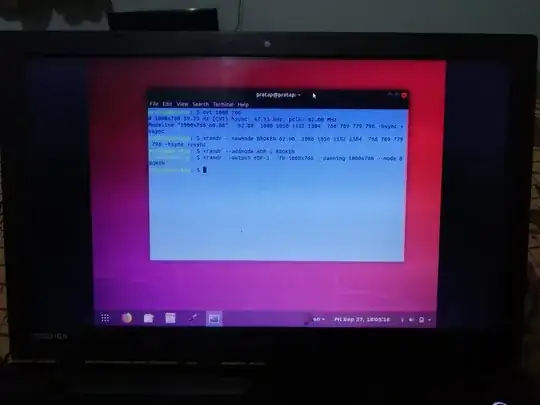

enter image description here

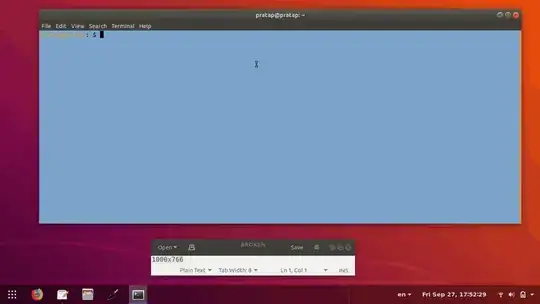

enter image description here

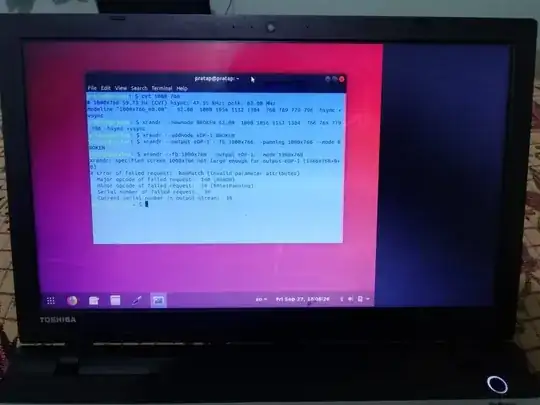

enter image description here

PRATAP
  • 22,460
  • 1
    Great answer! many many thanks. I wanted to use lower resolution in my 1920x1080 with centered 1:1 pixel mapping image, which would leave some area around blank. This is easy on Windows, but can't do this on LInux. Now I can do this with this trick. However, there's one problem. The blank areas are at the right and bottom. I want the image at center i.e. the blank areas should be around

    How do I acheive this? I'll be giving a bounty on the answer

     – Anwar Feb 12 '21 at 13:56
2

Great answer from @PRATAP. I want to add that in my case, I had to change the position of my monitor with transform because my screen was broken in a different location.

xrandr --fb 1096x768 --output LVDS-1 --mode 1280x800 --transform 1,0,-184,0,1,-32,0,0,1

PRATAP
  • 22,460
Gawiga
  • 21
1

The fbset program can apply a margin to any border. xrandr on the other hand only manages left and right borders simultaneously and/or top and bottom borders simultaneously for overscan / underscan.

You can read the man page on the internet:

Display timings:

-pixclock <value>
    set the length of one pixel (in picoseconds). Note that the frame buffer device may only support some pixel lengths

-left <value>
    set left margin (in pixels)

-right <value>
    set right margin (in pixels)

-upper <value>
    set upper margin (in pixel lines)

-lower <value>
    set lower margin (in pixel lines)

-hslen <value>
    set horizontal sync length (in pixels)

-vslen <value>
    set vertical sync length (in pixel lines)

--timings, -t ...
    set all timing parameters at once in the order <pixclock> <left> <right> <upper> <lower> <hslen> <vslen>, e.g. -t 35242 64 96 35 12 112 2
