Failed to move /home directory to a new partition?

Question

Running Ubuntu 18.04 64-bit on a system with 2 hard drives. System is dual boot: Win-10 & Xubuntu. The PC has 2 disk drives: a small boot flash drive with a 14.7 Gb Partition for Linux and a 169 Gb partition for Linux on the 2nd data drive.

Ubuntu installed itself completely to the 14.7 Gb Partition & that's where the $Home directory was mounted at /. Both OSes booted fine but the 2nd drive was left as 169 GB: unallocated space. Used GParted boot disk to set this 169 Gb as a primary partition formatted ext4 following the article Partitioning/Home/Moving to move my home to the new home on the "big" 169 GB partition.

All seemed to go well but then the 169 Gb partition "disappeared". I can still find it under blkid:

$ lsblk -o NAME,FSTYPE,LABEL,SIZE,MOUNTPOINT

NAME   FSTYPE   LABEL         SIZE MOUNTPOINT
loop0  squashfs              27.1M /snap/snapd/7264
loop1  squashfs                55M /snap/core18/1754
loop2  squashfs                55M /snap/core18/1705
loop3  squashfs              54.8M /snap/gtk-common-themes/1502
loop4  squashfs              62.1M /snap/gtk-common-themes/1506
loop5  squashfs              17.9M /snap/gedit/537
loop6  squashfs               7.7M /snap/gedit/371
loop7  squashfs             160.2M /snap/gnome-3-28-1804/116
loop8  squashfs                27M /snap/snapd/6953
sda                         119.2G
├─sda1 ntfs     SSHD_boot    91.1G
├─sda2 ntfs                   834M
├─sda3                          1K
├─sda5 swap                  12.6G
└─sda6 ext4                  14.8G /
sdb                         931.5G
├─sdb1 ntfs     Sam 860 Evo 762.6G
└─sdb2 ext4     Sam Evo P2    169G /home

But when I try to mount it per my fstab, it simply isn't mounted. It is the sdb2 ext4 at the bottom of the listing. Here's my /etc/fstab:

# /etc/fstab: static file system information.
#
# Use 'blkid' to print the universally unique identifier for a
# device; this may be used with UUID= as a more robust way to name devices
# that works even if disks are added and removed. See fstab(5).
#
# <file system> <mount point>   <type>  <options>       <dump>  <pass>
# / was on /dev/sda6 during installation
# original filesystem
UUID=377ba606-019e-4408-a5a8-832bab58f3bc /               ext4    errors=remount-ro 0       1
# new 169 Gb partition label Sam Evo P2
UUID=295d54bd-8508-4dd8-83dc-80f950028d8d /home     ext4    defaults        0       2
/swapfile                                 none            swap    sw              0       0

The wiki "Moving Home" article seems to neglect mentioning exactly how to mount both partitions. The OS boot partition is under: sda6 while the new /home is under sdb2.

Any suggestions on how I can complete the move and load my new $Home partition?

---

Responding to the question about how I know my new partition is not mounted

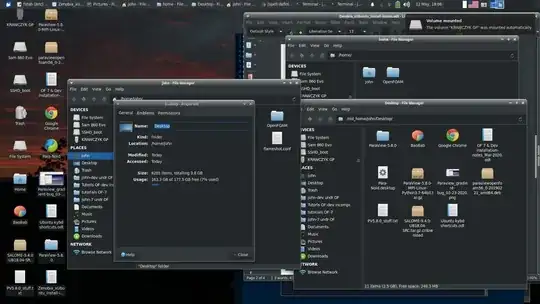

Below is my Desktop. Before I edited fstab, it showed 3 filesystems: "Sam Evo P2" which is my 1TB Samsung Evo 860 drive: Partition 2 {ext4}. This partition was mounted under /home. It also showed the others: Sam 860 Evo + SSHD_boot } both of these are working fine as NTFS Windows partitions.

Now as you can see the "Sam Evo P2" is gone and hovering over File System shows I've used 98% of the 15.6 Gb.

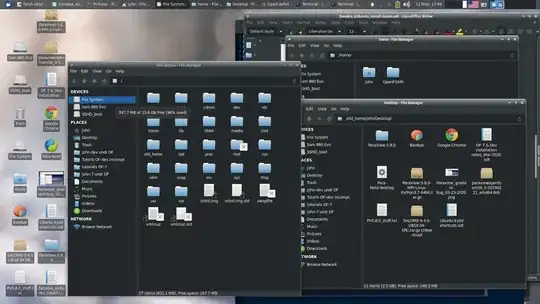

However if I go into the filesystem /home/john then it appears that I've actually mounted that 169Gb partition {here it says 177.5 Gb}.

Note that /old_home is a copy of my home directory from when I only mounted the 15.6 Gb partition. Eventually I should delete it if my system works. Does this mean that my system is actually working???
