Internet sites are loading slowly sometimes with Firefox and Chromium

Question

On Ubunustudio sometimes sites load very slowly. This happens more often when I visit the site for the first time (e.g. looking something in google). The issue occurs in Firefox and Chromium. I already tried disabling IP6 which didn't help. Is there anything I can test beside of that? Download and upload speeds are fine, I guess it's maybe due to resolving adresses?

My system:

System:
  Host: marco-MS-7817 Kernel: 5.4.0-47-lowlatency x86_64 bits: 64
  Desktop: Xfce 4.14.2 Distro: Ubuntu 20.04.1 LTS (Focal Fossa)
Machine:
  Type: Desktop Mobo: MSI model: H81M-E34 (MS-7817) v: 3.0
  serial: <superuser/root required> BIOS: American Megatrends v: 17.5
  date: 03/30/2015
CPU:
  Topology: Quad Core model: Intel Core i5-4460 bits: 64 type: MCP
  L2 cache: 6144 KiB
  Speed: 3200 MHz min/max: 800/3200 MHz Core speeds (MHz): 1: 3200 2: 3200
  3: 3200 4: 3200
Graphics:
  Device-1: Intel Xeon E3-1200 v3/4th Gen Core Processor Integrated Graphics
  driver: i915 v: kernel
  Display: x11 server: X.Org 1.20.8 driver: modesetting unloaded: fbdev,vesa
  resolution: 1920x1080~60Hz
  OpenGL: renderer: Mesa DRI Intel HD Graphics 4600 (HSW GT2)
  v: 4.5 Mesa 20.0.8
Audio:
  Device-1: Intel Xeon E3-1200 v3/4th Gen Core Processor HD Audio
  driver: snd_hda_intel
  Device-2: BEHRINGER UMC204HD 192k type: USB driver: snd-usb-audio
  Device-3: AKAI Professional M.I. type: USB
  driver: hid-generic,snd-usb-audio,usbhid
  Sound Server: ALSA v: k5.4.0-47-lowlatency
Network:
  Device-1: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet
  driver: r8169
  IF: enp2s0 state: up speed: 1000 Mbps duplex: full mac: d8:cb:8a:e8:e9:99
Drives:
  Local Storage: total: 523.08 GiB used: 159.23 GiB (30.4%)
  ID-1: /dev/sda vendor: Samsung model: SSD 850 EVO 250GB size: 232.89 GiB
  ID-2: /dev/sdb type: USB vendor: Samsung model: Portable SSD T5
  size: 232.89 GiB
  ID-3: /dev/sdc type: USB vendor: SanDisk model: Ultra size: 57.30 GiB
Partition:
  ID-1: / size: 36.41 GiB used: 12.45 GiB (34.2%) fs: ext4 dev: /dev/sda1
  ID-2: /home size: 184.23 GiB used: 66.59 GiB (36.1%) fs: ext4
  dev: /dev/sda6
  ID-3: swap-1 size: 7.45 GiB used: 0 KiB (0.0%) fs: swap dev: /dev/sda5
Sensors:
  System Temperatures: cpu: 41.0 C mobo: N/A
  Fan Speeds (RPM): N/A
Info:
  Processes: 260 Uptime: 20m Memory: 7.23 GiB used: 3.97 GiB (54.9%)
  Shell: bash inxi: 3.0.38

edit:

 sudo lshw -C network
[sudo] Passwort für marco:
  *-network
       Beschreibung: Ethernet interface
       Produkt: RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller
       Hersteller: Realtek Semiconductor Co., Ltd.
       Physische ID: 0
       Bus-Informationen: pci@0000:02:00.0
       Logischer Name: enp2s0
       Version: 0c
       Seriennummer: d8:cb:8a:e8:e9:99
       Größe: 1Gbit/s
       Kapazität: 1Gbit/s
       Breite: 64 bits
       Takt: 33MHz
       Fähigkeiten: pm msi pciexpress msix vpd bus_master cap_list ethernet physical tp mii 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
       Konfiguration: autonegotiation=on broadcast=yes driver=r8169 duplex=full firmware=rtl8168g-2_0.0.1 02/06/13 ip=192.168.178.23 latency=0 link=yes multicast=yes port=MII speed=1Gbit/s
       Ressourcen: irq:18 ioport:e000(Größe=256) memory:f7d00000-f7d00fff memory:f0000000-f0003fff
ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp2s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether d8:cb:8a:e8:e9:99 brd ff:ff:ff:ff:ff:ff
    inet 192.168.178.23/24 brd 192.168.178.255 scope global dynamic noprefixroute enp2s0
       valid_lft 862605sec preferred_lft 862605sec

@tracepath

When I execute it I'll get 1500 in the beginning, but the second time I get 1492, which seems to be the better value. Maybe this explains why I get issues sometimes when I first try to load a page. Where can I set MTU to 1492 permanently?

tracepath www.google.com
 1?: [LOCALHOST]                      pmtu 1500
 1:  fritz.box                                             7.938ms
 1:  wpad.fritz.box                                        1.830ms
 2:  x4db53c5a.dyn.telefonica.de                           2.639ms pmtu 1492
 2:  loopback1.0003.acln.02.fra.de.net.telefonica.de      14.828ms
 3:  bundle-ether30.0004.dbrx.02.fra.de.net.telefonica.de  16.144ms
 4:  bundle-ether1.0004.prrx.02.fra.de.net.telefonica.de  15.519ms
 5:  72.14.213.76                                         16.803ms asymm 10
 6:  keine Antwort
 7:  keine Antwort
 8:  keine Antwort
 9:  keine Antwort
10:  keine Antwort
11:  keine Antwort
12:  keine Antwort
13:  keine Antwort
14:  keine Antwort
15:  keine Antwort
16:  keine Antwort
17:  keine Antwort
18:  keine Antwort
19:  keine Antwort
20:  keine Antwort
21:  keine Antwort
22:  keine Antwort
23:  keine Antwort
24:  keine Antwort
25:  keine Antwort
26:  keine Antwort
27:  keine Antwort
28:  keine Antwort
29:  keine Antwort
30:  keine Antwort
     Too many hops: pmtu 1492
     Resume: pmtu 1492

more info added on 28th september ....

link to image file with MTU settings: https://i.stack.imgur.com/LKkGK.png

systemd-resolve --status
Global
       LLMNR setting: no
MulticastDNS setting: no
  DNSOverTLS setting: no
      DNSSEC setting: no
    DNSSEC supported: no
          DNS Domain: fritz.box
          DNSSEC NTA: 10.in-addr.arpa
                      16.172.in-addr.arpa
                      168.192.in-addr.arpa
                      17.172.in-addr.arpa
                      18.172.in-addr.arpa
                      19.172.in-addr.arpa
                      20.172.in-addr.arpa
                      21.172.in-addr.arpa
                      22.172.in-addr.arpa
                      23.172.in-addr.arpa
                      24.172.in-addr.arpa
                      25.172.in-addr.arpa
                      26.172.in-addr.arpa
                      27.172.in-addr.arpa
                      28.172.in-addr.arpa
                      29.172.in-addr.arpa
                      30.172.in-addr.arpa
                      31.172.in-addr.arpa
                      corp
                      d.f.ip6.arpa
                      home
                      internal
                      intranet
                      lan
                      local
                      private
                      test
Link 2 (enp2s0)
      Current Scopes: DNS

DefaultRoute setting: yes

       LLMNR setting: yes

MulticastDNS setting: no

  DNSOverTLS setting: no

      DNSSEC setting: no

    DNSSEC supported: no

  Current DNS Server: 192.168.178.1
         DNS Servers: 192.168.178.1
          DNS Domain: ~.

                      fritz.box

lines 25-47/47 (END)
                      31.172.in-addr.arpa
                      corp

                      d.f.ip6.arpa

                      home

                      internal

                      intranet

                      lan

                      local

                      private

                      test
Link 2 (enp2s0)
      Current Scopes: DNS

DefaultRoute setting: yes

       LLMNR setting: yes

MulticastDNS setting: no

  DNSOverTLS setting: no

      DNSSEC setting: no

    DNSSEC supported: no

  Current DNS Server: 192.168.178.1
         DNS Servers: 192.168.178.1
          DNS Domain: ~.

                      fritz.box

~
ls -al /etc/resolv.conf
lrwxrwxrwx 1 root root 29 Sep 27 22:10 /etc/resolv.conf -> ../run/resolvconf/resolv.conf
cat /etc/resolv.conf
Dynamic resolv.conf(5) file for glibc resolver(3) generated by resolvconf(8)
DO NOT EDIT THIS FILE BY HAND -- YOUR CHANGES WILL BE OVERWRITTEN
127.0.0.53 is the systemd-resolved stub resolver.
run "systemd-resolve --status" to see details about the actual nameservers.
nameserver 127.0.0.53
search fritz.box
dpkg -l dnsmasq | grep ii
ii  dnsmasq-base     2.80-1.1ubuntu1 amd64        Small caching DNS proxy and DHCP/TFTP server

Comments have been moved to chat. Please continue there if you like, thanks! — Zanna, Sep 20 '20 at 17:37
The issue is solved by installing the DKMS 8168 driver: https://askubuntu.com/questions/1308793/realtek-r8169-driver-ubuntu-20-04-with-rtl8111-8168-8411-pci-express-gigabit-et — marco, Jan 31 '21 at 16:51

heynnema · Accepted Answer · 2020-09-28T19:29:02.073

2

Your problem is probably with the MTU setting for your DSL connection.

enp2s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500

There's a MTU setting in Ubuntu's network configuration, and a WAN MTU setting in your router.

For DSL, a common MTU setting is 1492. Just go ahead and try this value first and see if your web sites are now accessible.

To determine the correct setting, start with all MTU settings = 1500 and VPN = off. (VPN requires different testing).

In the terminal:

ping [-c count] [-M do] [-s packet_size] [host]

The options used are:

c count: number of times to ping
M hint: Select Path MTU Discovery strategy. may be either do (prohibit fragmentation, even local one), want (do PMTU discovery, fragment locally when packet size is large), or dont (do not set DF flag).
s packet_size: Specifies the number of data bytes to be sent.

You should always start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 1 until you get a fragmented packet. Take that value (last good value) and add 28 to the value to account for the various TCP/IP headers. Eg. let's say that 1452 was the proper packet size (where you first got an ICMP reply to your ping). The actual MTU size would be 1480, which is the optimum for the network we're working with.

ping -c 4 -M do -s 1472 8.8.8.8 # this will probably show fragmentation

ping -c 4 -M do -s 1462 8.8.8.8 # may show fragmentation

ping -c 4 -M do -s 1452 8.8.8.8 # no fragmentation?

ping -c 4 -M do -s 1453 8.8.8.8 # still no fragmentation?

reference: How to determine the proper MTU size with ICMP pings

edited Sep 28 '20 at 19:29

answered Sep 20 '20 at 15:53

heynnema

70,711

Sorry to revive this thread, but i'm still having some minor issues when loading some websites. I think it's a problem with the DNS name server maybe. Setting MTU to 1492 may improve the speed, but I can't tell for sure. Sometimes websites are not loading for some seconds and in Chromium (bottom lieft side) I see the message "Resolv Host". That's why I think the issue is releated to this. Should I start a new thread or edit my first post to add more info? @heynnema – marco Sep 28 '20 at 19:21
@marco If you know of a current site that you're having trouble with, do a tracepath name_of_site and show me. Also, did you place 1492 in the Wired Connection MTU area? – heynnema Sep 28 '20 at 19:25
Wow, that was fast :o ... Yes I put it under ethernet. The sites usually load fast the second time I try it, but I see what I can do. Don't know if this is related, but when I start chromium for the first time after a boot it takes 5 seconds or so to load. The second time it comes up immediately. – marco Sep 28 '20 at 19:27
I can also leave the issue marked as solved, cause I think it might improved the speed a bit. – marco Sep 28 '20 at 19:29

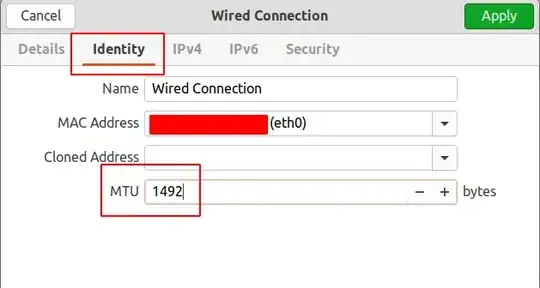

@marco I updated my answer with an image for you. Also, my answer isn't currently marked as solved, as the checkmark icon has not been clicked by yourself. Show me the tracepath from my prior comment. – heynnema Sep 28 '20 at 19:31
@marco Also show me systemd-resolve --status. It sounds more like you've got a DNS problem. Show me ls -al /etc/resolv.conf and cat /etc/resolv.conf. – heynnema Sep 28 '20 at 19:34
I added the info in the first post. I played with DNS settings yesterday by adding the google DNS server (I took it out again from the network settings, I did not edit resolv,conf by hand), but that didn't help. Most of the time sites load fine, it happens more frequently when I start the PC and visit sites for the first time. @heynnema – marco Sep 28 '20 at 19:42
@marco You didn't show me the entire systemd-resolve --status command. Also, where did you define the DNS search domain to be fritz.box? – heynnema Sep 28 '20 at 19:49
@marco Also show me dpkg -l *dnsmasq* | grep ii. – heynnema Sep 28 '20 at 19:51
@heynneman: I edit my post. The fritz box was set automatically. I didn't add this by myself. But it can be possible that before yesterday it was only "fritz box" instead of "search fritz.box". Not sure about this. – marco Sep 28 '20 at 19:56
Let us continue this discussion in chat. – heynnema Sep 28 '20 at 20:00
