I have installed Focal (dual boot, Windows 10 was already installed), and the GRUB menu lists only Ubuntu, no Windows, which was customary on my PC also with previous Ubuntu releases. With previous releases, however, running boot-repair would fix the issue, but not this time.

Oddly enough, when I see the GRUB menu if I:

  • hit [Esc] to enter the GRUB CLI
  • type exit to leave the GRUB CLI

then the system boots straight into Windows 10.

I have also run sudo grub-update but no change.

Under Windows 10, I have run bcdedit /set {bootmgr} path \EFI\ubuntu\shimx64.efi but no change. I noticed that under C:\Windows\Boot\EFI there is no ubuntu directory, and can't find a shimx64.efi in there.

In the motherboard UEFI I can choose two other entries to boot from, but one behaves the same, and the other boots straight into Windows 10, with no GRUB menu.

This is a pastebin with the report from boot-repair https://paste.ubuntu.com/p/6ZHvQqSfMN/

Here below the /etc/default/grub

Any other information I can collect to troubleshoot the issue?

# If you change this file, run 'update-grub' afterwards to update
# /boot/grub/grub.cfg.
# For full documentation of the options in this file, see:
#   info -f grub -n 'Simple configuration'

GRUB_DEFAULT=0
GRUB_TIMEOUT_STYLE=menu
GRUB_TIMEOUT=10
GRUB_DISTRIBUTOR=lsb_release -i -s 2> /dev/null || echo Debian
GRUB_CMDLINE_LINUX_DEFAULT="quiet splash"
GRUB_CMDLINE_LINUX=""


Uncomment to enable BadRAM filtering, modify to suit your needs


This works with Linux (no patch required) and with any kernel that obtains


the memory map information from GRUB (GNU Mach, kernel of FreeBSD ...)


#GRUB_BADRAM="0x01234567,0xfefefefe,0x89abcdef,0xefefefef"


Uncomment to disable graphical terminal (grub-pc only)


#GRUB_TERMINAL=console


The resolution used on graphical terminal


note that you can use only modes which your graphic card supports via VBE


you can see them in real GRUB with the command `vbeinfo'


#GRUB_GFXMODE=640x480


Uncomment if you don't want GRUB to pass "root=UUID=xxx" parameter to Linux


#GRUB_DISABLE_LINUX_UUID=true


Uncomment to disable generation of recovery mode menu entries


#GRUB_DISABLE_RECOVERY="true"


Uncomment to get a beep at grub start


#GRUB_INIT_TUNE="480 440 1"

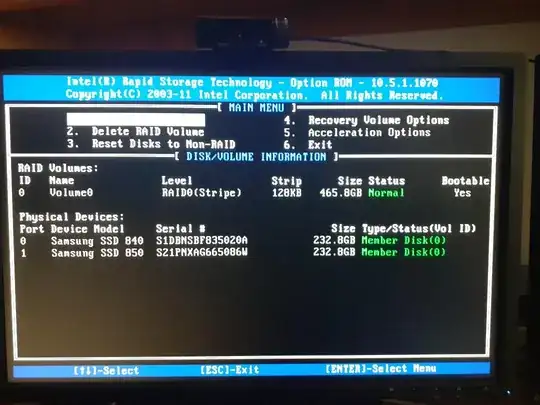

[Additional info] I have two SSDs configured as RAID 0 with Intel RST. On that RAID, I have both Windows 10 and Ubuntu 20.04. See pic below. In the UEFI BIOS, Sata mode selection is set to RAID, no AHCI. Intel RAID config

After removing the boot entry as per oldfred recommendation (with efibootmgr), the PC booted directly into Windows 10, without showing the GRUB menu anymore. From there, I modified the boot entries again to regain access to Ubuntu; I also tried running boot-repair one more time, this is the current status:

$ sudo efibootmgr -v
BootCurrent: 000E
Timeout: 1 seconds
BootOrder: 000E,0000,0007,0004,0009,0001
Boot0000* Windows Boot Manager  HD(2,GPT,baeb537c-b470-48ab-ae4c-4663a62e8d2a,0x109000,0x32000)/File(\EFI\ubuntu\shimx64.efi)WINDOWS.........x...B.C.D.O.B.J.E.C.T.=.{.9.d.e.a.8.6.2.c.-.5.c.d.d.-.4.e.7.0.-.a.c.c.1.-.f.3.2.b.3.4.4.d.4.7.9.5.}...,................
Boot0001* CD/DVD Drive  BBS(CDROM,,0x0)AMGOAMNO........o.H.L.-.D.T.-.S.T. .D.V.D.R.A.M. .G.H.2.2.N.S.7.0....................A...........................>..Gd-.;.A..MQ..L.2.K.B.Z.9.8.5.8.2.5. .9. . . . . . . . ......AMBO
Boot0004* ST31000524AS  BBS(HD,,0x0)AMGOAMNO........m.A.0.S.0. .T.O.S.H.I.B.A. .H.D.W.D.1.2.0.........................rN.D+..,.\...........>..Gd-.;.A..MQ..L.A.0.S.0. .T.O.S.H.I.B.A. .H.D.W.D.1.2.0......AMBOAMNO........g.A.0.S.1. .S.T.3.1.0.0.0.5.2.4.A.S.........................rN.D+..,.\...........8..Gd-.;.A..MQ..L.A.0.S.1. .S.T.3.1.0.0.0.5.2.4.A.S......AMBOAMNO........_.I.n.t.e.l. .V.o.l.u.m.e.0.........................rN.D+..,.\...........0..Gd-.;.A..MQ..L.I.n.t.e.l. .V.o.l.u.m.e.0......AMBO
Boot0007* Windows Boot Manager  HD(2,GPT,baeb537c-b470-48ab-ae4c-4663a62e8d2a,0x109000,0x32000)/File(\EFI\Microsoft\Boot\bootmgfw.efi)
Boot0009* Removable Drive   BBS(Floppy,,0x0)AMGOAMNO..........G.e.n.e.r.i.c. .M.a.s.s.S.t.o.r.a.g.e.C.l.a.s.s.1.5.3.6....................A.....................................N..Gd-.;.A..MQ..L.G.e.n.e.r.i.c. .M.a.s.s.S.t.o.r.a.g.e.C.l.a.s.s.1.5.3.6......AMBOAMNO..........G.e.n.e.r.i.c. .M.a.s.s.S.t.o.r.a.g.e.C.l.a.s.s.1.5.3.6....................A.............................N..Gd-.;.A..MQ..L.G.e.n.e.r.i.c. .M.a.s.s.S.t.o.r.a.g.e.C.l.a.s.s.1.5.3.6......AMBO
Boot000E* ubuntu    HD(2,GPT,baeb537c-b470-48ab-ae4c-4663a62e8d2a,0x109000,0x32000)/File(EFI\Ubuntu\grubx64.efi)
Fanta
  • 327
  • 1
    You have two Windows UEFI boot entries and one is using shim(grub's secure boot). Compare Boot0000 and Boot0007 starting line 69. Best to remove 0000 and only have correct Windows entry. You are using Microsoft dyamic partitions. "Microsoft LDM data` Line 136 Best not to use dynamic, Linux does not work with it. Do not understand how sda & sdb can be RAID as not same partitions? Do you have RAID/Intel RST on, and not AHCI? – oldfred Sep 30 '20 at 20:30
  • I have update the issue with info. – Fanta Oct 01 '20 at 10:13
  • Your sudo efibootmgr -v still looks like the original list as 0000 is Windows description but booting Ubuntu. What brand/model system? What version of Ubuntu, 20.04.1? And Server used to be the only one that installed with RAID, well. But RAID is identical partitions on two or more drives. You do not have identical partitions. The Intel RST is just another driver that lets you use one or more drives, that may or may not actually be RAID. Linux used to not work with RST and you had to change to AHCI driver. – oldfred Oct 01 '20 at 14:10
  • It is a custom build with an old P8P67 EVO motherboard and Intel i7-2700K CPU. I recall that before Ubuntu 18.04 I had to install server and then the desktop on top of it, but since 18.04 (if I am correct) also the desktop install recognizes RAID.

    -> lsb_release -a LSB Version: core-11.1.0ubuntu2-noarch:printing-11.1.0ubuntu2-noarch:security-11.1.0ubuntu2-noarch Distributor ID: Ubuntu Description: Ubuntu 20.04.1 LTS Release: 20.04 Codename: focal

     – Fanta Oct 02 '20 at 10:27

1 Answers1

0

I didn't manage to make boot-repair work in my case, even after a fresh install of Win 10 and Focal, but have been able to manually add an entry for Win to the GRUB menu following the instructions here: https://askubuntu.com/a/977251/528780
