I'm trying to install Ubuntu Server (amd64, trying 20.04 LTS but could be any distro above 12.04, they all fail) on a Dell PowerEdge R710 with a hardware RAID10 build using PERC 6/i card. I'm using UEFI boot and the Virtual Disk of 4 TB has a GPT table with protective MBR.

For versions 18 and 20 of Ubuntu Server, with the live ISO, setup wizard fails me at Storage scanning phase, with an error telling that I can view full report, send to Canonical, go to a Root Shell or continue setup. If I choose continue, I can install the system smoothly as long as I do not use LVM, otherwise it will throw another error during system files copy and restarts the installation wizard.

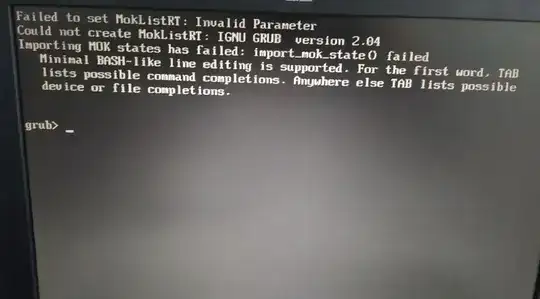

Storage screen recognizes the RAID array with expected size (~ 4 TB) and can even auto partition it with default values. After reboot, I can't boot in the system. It falls into GRUB2 console with below error:

Error says failed to set mok list r t, invalid parameter; could not create mok list r t, i gnu Grub version 2.04; import m o k states has failed, function import_mok_state() failed; after that it falls to a Grub bash screen

  • I used a flash drive with Ventoy to run the ISO;
  • Setup creates a 512MB EFI partition at /dev/sda1 and use the rest of the disk as /dev/sda2 (3.6 TB);
  • I tried legacy ISOs, setup runs fine but also won't boot, same GRUB screen end;
  • ls gives me (proc) (hd0) (cd0);
  • ls (hd0) gives me Device (hd0) - No known filesystem detected;
  • I have tried to copy grubx64.efi to shimx64.efi as suggested this answer
  • BIOS version of the server is 6.2.2, I didn't find a way to update it without a Windows system which I don't have access.

I ask for help because I'm very new at Grub and boot-related stuff, and although I'm learning about it right now, I have a critical problem to fix that require this boot to work. Any ideas will be very appreciated, thanks in advance!

al'ein
  • 71
  • How are the partitions laid out? Do you just have /dev/sda1 for the EFI and /dev/sda2 for everything else? –  Jan 14 '21 at 05:17
  • @Matigo sorry it took long to answerd, I had /dev/sda2 for /root and /dev/sda3 for the rest of the RAID. – al'ein Feb 18 '21 at 09:48

1 Answers1

0

Can you boot ubuntu from installation usb then from terminal run

sudo grub-install /dev/sda

and then

 sudo update-grub
ognjen011
  • 1,319
