I have been having trouble installing ubuntu network for my server Dell R610. My knowledge regarding server is pretty low and I do pray to everything that someone would be able to help me here!

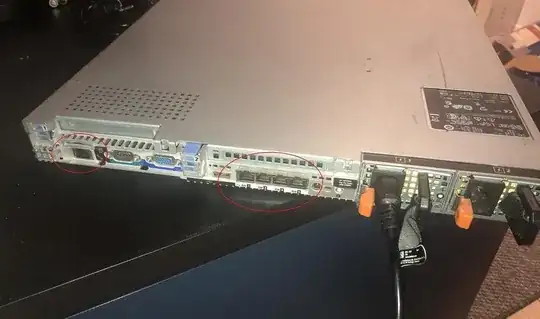

I currently have 5 network ports as you can see in the following picture:

server

When I tried to install Ubuntu, it said that I did not had any connection during the installment and I skipped the part. Then once I accessed the server I started by doing ping google.com which returned "Network is unreachable" I thjen checked my ip addr and tried to follow: https://www.youtube.com/watch?v=RwXDzsVY8-4 and my setup ended up looking like this:

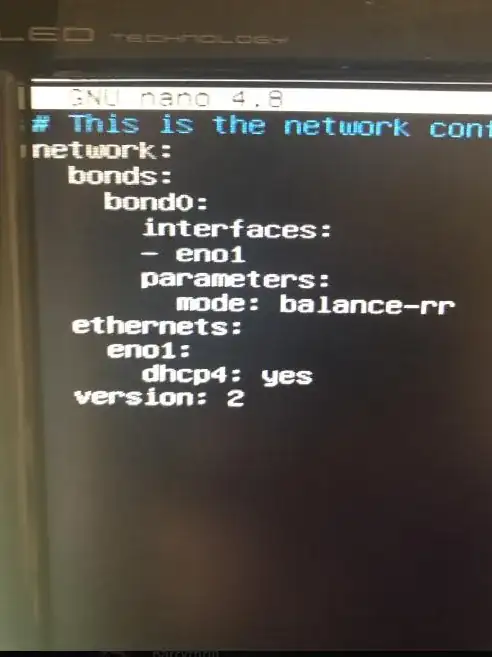

enter image description here Pic 2

After that I saved by doing CTRL + S and then netplan apply. I tried to ping google again and still I reached the "Network is unreachable". The network cable was connected to the port that says GB 1.

Now I still do not have any network and I have no idea what to do, I hope someone could be my angel and help me out from here ! :'(

PythonNewbie
  • 101
  • The port on the back at the far left is the iDRAC or Remote Management port. I honestly though haven't had much success with netplan and bonding. Even in the data center I work in we don't use netplan. You're more than welcome to look at https://askubuntu.com/questions/1293208/cant-disable-local-addresses-on-network-interfaces/1293486#1293486 my answer there. Since the R610 has 2x1Gb and 2x10Gb ports and if you bond them make sure you are bonding and if I remember right the 10Gb are the inner 2 ports, but it has been a while since I have worked on a R610. – Terrance Dec 17 '20 at 22:33
  • If bonding to use the matching speed ports I mean. – Terrance Dec 17 '20 at 22:33
