Get a logical diagram of a python code

Question

I'm working on a big python script that is getting more and more complex. I would like to generate a diagram (flow-chart?) of my code to have a better understanding of all the conditions and loops that are involved, even if the diagram doesn't understand the functions. That way, I could also check that the logic is OK.

Here is an example to illustrate : Let say I have this simple python script

a = 33
b = 200
name = "martin"
print("Starting script")
if b > a:
  print("b is greater than a")
  if name == "martin":
    print("The name is martin")
  else:
    print("The name is not martin")

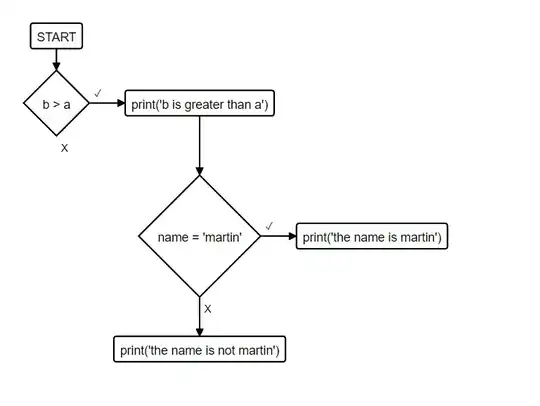

I could run a command in terminal like diagram generate myScript.py and it would output something like this :

Is there any package that could help me with that ?

surely you're better off with unit and acceptance tests? Anything more than a trivial program is going to create an enormous diagram that you're going to struggle to comprehend. — Robert Longson, Sep 16 '22 at 08:50
@RobertLongson I understand your point of view and I agree. The goal is exactly to review short-of trivial program — B.T, Sep 16 '22 at 08:56

karel · Accepted Answer · 2022-09-16T08:58:42.270

1

PyFlowchart is a package to:

write flowcharts in the Python language
translate Python source codes into flowcharts

PyFlowchart produces flowcharts in flowchart.js flowchart DSL, a widely used flow chart textual representation. It's easy to convert these flowcharts text into an image via flowchart.js.org, francoislaberge/diagrams or some markdown editors.

To install PyFlowchart in all currently supported versions of Ubuntu open the terminal and type:

sudo apt install python3-pip
pip3 install pyflowchart

To make a flowchart for your example.py Python code run:

python3 -m pyflowchart example.py

PyFlowchart will output the generated flowchart.js DSL. Go to http://flowchart.js.org or use a markdown editor like Typora (sudo snap install typora) to turn the output code into a rendered logical diagram.

_{Source: revised from pyflowchart - PyPI}

edited Sep 16 '22 at 08:58

answered Sep 16 '22 at 08:51

karel

114,770

Thank you I'm going to try that out – B.T Sep 16 '22 at 08:57
The command only display the flowchat right ? Cause I don't see any new file using it – B.T Sep 16 '22 at 09:03
flowchart DSL is a widely used flow chart textual representation. You need another app like Typora to turn the output code into a rendered logical diagram, or go to http://flowchart.js.org/. – karel Sep 16 '22 at 09:05
1

Indeed. It worked like that ! Thank you – B.T Sep 16 '22 at 09:08
1

To automatically generate any kind of flowchart in Ubuntu using the dot programming language see this answer. – karel Sep 16 '22 at 09:14
