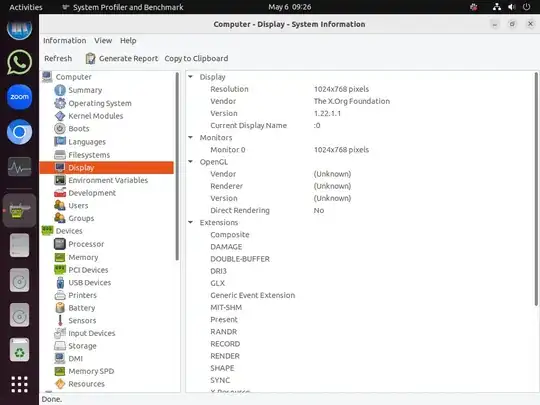

screenshot as:

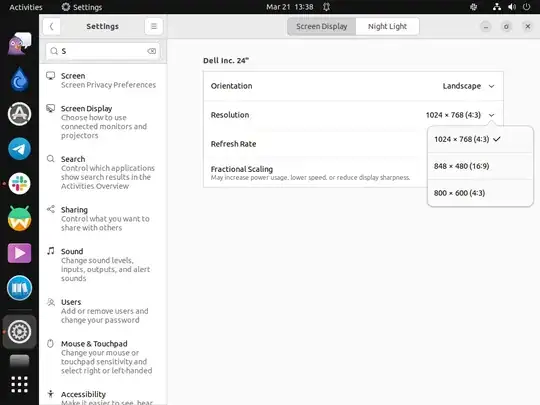

and:
However, that resolution is woefully low. How is a higher resolution selected?
Previously, rebooting fixed the resolution problem. Now, it's stuck at the "highest" resolution which is far lower than the resolution yesterday.
In the context of generally troubleshooting Wayland, for this given graphics card:
nicholas@mordor:~$
nicholas@mordor:~$ lspci | grep VGA
00:02.0 VGA compatible controller: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller (rev 09)
nicholas@mordor:~$
nicholas@mordor:~$ lsb_release -a
No LSB modules are available.
Distributor ID: Ubuntu
Description: Ubuntu 22.04 LTS
Release: 22.04
Codename: jammy
nicholas@mordor:~$
How would I determine the resolution it's detecting as available for a given monitor?
nicholas@mordor:~$
nicholas@mordor:~$ hwinfo --short
cpu:
Intel(R) Core(TM) i5-2400 CPU @ 3.10GHz, 3280 MHz
Intel(R) Core(TM) i5-2400 CPU @ 3.10GHz, 3275 MHz
Intel(R) Core(TM) i5-2400 CPU @ 3.10GHz, 3275 MHz
Intel(R) Core(TM) i5-2400 CPU @ 3.10GHz, 3247 MHz
keyboard:
/dev/input/event3 Colorado HP Wired Desktop 320K Keyboard
mouse:
/dev/input/mice SiGma Micro Usb Mouse
monitor:
DELL E2422H
graphics card:
Intel 2nd Generation Core Processor Family Integrated Graphics Controller
sound:
Intel 6 Series/C200 Series Chipset Family High Definition Audio Controller
storage:
Intel SATA Controller [RAID mode]
network:
eno1 Intel 82579LM Gigabit Network Connection (Lewisville)
network interface:
lxcbr0 Ethernet network interface
lo Loopback network interface
eno1 Ethernet network interface
virbr0 Ethernet network interface
docker0 Ethernet network interface
disk:
/dev/sda WDC WD2500AAKS-0
partition:
/dev/sda1 Partition
/dev/sda2 Partition
/dev/sda3 Partition
/dev/sda4 Partition
/dev/sda5 Partition
cdrom:
/dev/sr0 TSSTcorp DVD-ROM TS-H353C
usb controller:
Intel 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2
Intel 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1
bios:
BIOS
bridge:
Intel 6 Series/C200 Series Chipset Family PCI Express Root Port 1
Intel Q67 Express Chipset LPC Controller
Intel 82801 PCI Bridge
Intel 2nd Generation Core Processor Family DRAM Controller
Intel 6 Series/C200 Series Chipset Family PCI Express Root Port 3
hub:
Intel Integrated Rate Matching Hub
Linux Foundation 2.0 root hub
Intel Integrated Rate Matching Hub
Linux Foundation 2.0 root hub
memory:
Main Memory
unknown:
FPU
DMA controller
PIC
Keyboard controller
/dev/lp0 Parallel controller
Intel 6 Series/C200 Series Chipset Family MEI Controller #1
Intel 6 Series/C200 Series Chipset Family SMBus Controller
Intel 6 Series/C200 Series Chipset Family KT Controller
Serial controller
/dev/input/event5 Colorado HP Wired Desktop 320K Keyboard
nicholas@mordor:~$
nicholas@mordor:~$ hwprobe=bios.ddc.ports=4 hwinfo --monitor
16: None 00.0: 10000 Monitor
[Created at monitor.125]
Unique ID: rdCR.cKFyiqA6N1F
Parent ID: _Znp.xFWE_t6aB6C
Hardware Class: monitor
Model: "DELL E2422H"
Vendor: DEL "DELL"
Device: eisa 0xf136 "DELL E2422H"
Serial ID: "B6VFTK3"
Resolution: 720x400@70Hz
Resolution: 640x480@60Hz
Resolution: 640x480@75Hz
Resolution: 800x600@60Hz
Resolution: 800x600@75Hz
Resolution: 1024x768@60Hz
Resolution: 1024x768@75Hz
Resolution: 1280x1024@75Hz
Resolution: 1152x864@75Hz
Resolution: 1280x1024@60Hz
Resolution: 1600x900@60Hz
Resolution: 1920x1080@60Hz
Size: 527x296 mm
Year of Manufacture: 2021
Week of Manufacture: 52
Detailed Timings #0:
Resolution: 1920x1080
Horizontal: 1920 2008 2052 2200 (+88 +132 +280) +hsync
Vertical: 1080 1084 1089 1125 (+4 +9 +45) +vsync
Frequencies: 148.50 MHz, 67.50 kHz, 60.00 Hz
Driver Info #0:
Max. Resolution: 1920x1080
Vert. Sync Range: 50-75 Hz
Hor. Sync Range: 30-83 kHz
Bandwidth: 148 MHz
Config Status: cfg=new, avail=yes, need=no, active=unknown
Attached to: #14 (VGA compatible controller)
nicholas@mordor:~$
(Wasn't sure on the syntax using hwinfo to get more info on the graphics card or above monitor.)
Somewhat random info from a Fedora guide and an online man page, but I'm more interested in how Wayland uses this information.
