1

No audio output. There are several posts I've been referencing to try to get drivers and settings configured correctly, but I've had no success. There are several unanswered questions on here about the issue. Someone on Reddit appears to have gotten it working with 22.04, but I was unable to replicate their configuration.

Configuration: Alsa information script

!!################################
!!ALSA Information Script v 0.5.3
!!################################

!!Script ran on: Sun Nov 26 16:33:38 UTC 2023

!!Linux Distribution !!------------------

Ubuntu 22.04.3 LTS \n \l DISTRIB_ID=Ubuntu DISTRIB_DESCRIPTION="Ubuntu 22.04.3 LTS" PRETTY_NAME="Ubuntu 22.04.3 LTS" NAME="Ubuntu" ID=ubuntu ID_LIKE=debian HOME_URL="https://www.ubuntu.com/" SUPPORT_URL="https://help.ubuntu.com/" BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/" PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy" UBUNTU_CODENAME=jammy

!!DMI Information !!---------------

Manufacturer: Dell Inc. Product Name: XPS 13 9315 2-in-1 Product Version:
Firmware Version: 1.5.0 System SKU: 0B34 Board Vendor: Dell Inc. Board Name: 03Y9WX

!!ACPI Device Status Information !!---------------

/sys/bus/acpi/devices/ACPI0003:00/status 15 /sys/bus/acpi/devices/ACPI000C:00/status 15 /sys/bus/acpi/devices/ACPI000E:00/status 15 /sys/bus/acpi/devices/DLLK0B34:00/status 15 /sys/bus/acpi/devices/INT33A1:00/status 15 /sys/bus/acpi/devices/INT33D3:00/status 15 /sys/bus/acpi/devices/INT33D4:00/status 15 /sys/bus/acpi/devices/INT340E:00/status 15 /sys/bus/acpi/devices/INT346D:00/status 15 /sys/bus/acpi/devices/INT3472:02/status 15 /sys/bus/acpi/devices/INT3472:07/status 15 /sys/bus/acpi/devices/INT3537:00/status 15 /sys/bus/acpi/devices/INTC1041:00/status 15 /sys/bus/acpi/devices/INTC1046:00/status 15 /sys/bus/acpi/devices/INTC1046:01/status 15 /sys/bus/acpi/devices/INTC1046:02/status 15 /sys/bus/acpi/devices/INTC1046:03/status 15 /sys/bus/acpi/devices/INTC1046:04/status 15 /sys/bus/acpi/devices/INTC1055:00/status 15 /sys/bus/acpi/devices/INTC1070:00/status 15 /sys/bus/acpi/devices/INTC1099:00/status 15 /sys/bus/acpi/devices/LNXPOWER:00/status 1 /sys/bus/acpi/devices/LNXPOWER:01/status 1 /sys/bus/acpi/devices/LNXPOWER:04/status 1 /sys/bus/acpi/devices/MSFT8000:00/status 15 /sys/bus/acpi/devices/OVTI00AB:00/status 15 /sys/bus/acpi/devices/PNP0103:00/status 15 /sys/bus/acpi/devices/PNP0C02:02/status 8 /sys/bus/acpi/devices/PNP0C02:04/status 3 /sys/bus/acpi/devices/PNP0C02:05/status 3 /sys/bus/acpi/devices/PNP0C09:00/status 15 /sys/bus/acpi/devices/PNP0C0A:00/status 31 /sys/bus/acpi/devices/PRP00001:00/status 11 /sys/bus/acpi/devices/PRP00001:01/status 11 /sys/bus/acpi/devices/STM0125:00/status 15 /sys/bus/acpi/devices/USBC000:00/status 15 /sys/bus/acpi/devices/WACF3233:00/status 15 /sys/bus/acpi/devices/device:01/status 15 /sys/bus/acpi/devices/device:0f/status 15 /sys/bus/acpi/devices/device:10/status 15 /sys/bus/acpi/devices/device:7d/status 15 /sys/bus/acpi/devices/device:85/status 15 /sys/bus/acpi/devices/device:86/status 15 /sys/bus/acpi/devices/device:87/status 15 /sys/bus/acpi/devices/device:89/status 15 /sys/bus/acpi/devices/device:8a/status 15 /sys/bus/acpi/devices/device:8b/status 15 /sys/bus/acpi/devices/device:bf/status 15 /sys/bus/acpi/devices/device:c6/status 15 /sys/bus/acpi/devices/device:c8/status 15 /sys/bus/acpi/devices/device:ca/status 15

!!Kernel Information !!------------------

Kernel release: #38~22.04.1-Ubuntu SMP PREEMPT_DYNAMIC Thu Nov 2 18:01:13 UTC 2 Operating System: GNU/Linux Architecture: x86_64 Processor: x86_64 SMP Enabled: Yes

!!ALSA Version !!------------

Driver version: k6.2.0-37-generic Library version: 1.2.6.1 Utilities version: 1.2.6

!!Loaded ALSA modules !!-------------------

snd_soc_skl_hda_dsp (card 0)

!!Sound Servers on this system !!----------------------------

PipeWire: Installed - Yes (/usr/bin/pipewire) Running - Yes

Pulseaudio: Installed - Yes (/usr/bin/pulseaudio) Running - Yes

!!Soundcards recognised by ALSA !!-----------------------------

0 [sofhdadsp ]: sof-hda-dsp - sof-hda-dsp DellInc.-XPS1393152_in_1--03Y9WX

!!PCI Soundcards installed in the system !!--------------------------------------

0000:00:1f.3 Audio device [0403]: Intel Corporation Device [8086:51cc] (rev 01) (prog-if 80) Subsystem: Dell Device [1028:0b34]

!!Modprobe options (Sound related) !!--------------------------------

snd_pcsp: index=-2 snd_usb_audio: index=-2 snd_atiixp_modem: index=-2 snd_intel8x0m: index=-2 snd_via82xx_modem: index=-2 snd_atiixp_modem: index=-2 snd_intel8x0m: index=-2 snd_via82xx_modem: index=-2 snd_usb_audio: index=-2 snd_usb_caiaq: index=-2 snd_usb_ua101: index=-2 snd_usb_us122l: index=-2 snd_usb_usx2y: index=-2 snd_cmipci: mpu_port=0x330 fm_port=0x388 snd_pcsp: index=-2 snd_usb_audio: index=-2

!!Loaded sound module options !!---------------------------

!!Module: snd_soc_skl_hda_dsp * :

!!Sysfs card info !!---------------

!!Card: /sys/class/sound/card0 Driver: /sys/bus/platform/drivers/skl_hda_dsp_generic Tree: /sys/class/sound/card0 |-- controlC0 | |-- dev | |-- device -> ../../card0 | |-- power | |-- subsystem -> ../../../../../../../class/sound | -- uevent |-- device -> ../../../skl_hda_dsp_generic |-- hwC0D2 | |-- afg | |-- chip_name | |-- clear | |-- dev | |-- device -> ../../card0 | |-- driver_pin_configs | |-- hints | |-- init_pin_configs | |-- init_verbs | |-- mfg | |-- modelname | |-- power | |-- power_off_acct | |-- power_on_acct | |-- reconfig | |-- revision_id | |-- subsystem -> ../../../../../../../class/sound | |-- subsystem_id | |-- uevent | |-- user_pin_configs | |-- vendor_id |-- vendor_name |-- id |-- input22 | |-- capabilities | |-- device -> ../../card0 | |-- event12 | |-- id | |-- inhibited | |-- modalias | |-- name | |-- phys | |-- power | |-- properties | |-- subsystem -> ../../../../../../../class/input | |-- uevent | -- uniq |-- input23 | |-- capabilities | |-- device -> ../../card0 | |-- event13 | |-- id | |-- inhibited | |-- modalias | |-- name | |-- phys | |-- power | |-- properties | |-- subsystem -> ../../../../../../../class/input | |-- uevent |-- uniq |-- input24 | |-- capabilities | |-- device -> ../../card0 | |-- event14 | |-- id | |-- inhibited | |-- modalias | |-- name | |-- phys | |-- power | |-- properties | |-- subsystem -> ../../../../../../../class/input | |-- uevent | -- uniq |-- number |-- pcmC0D1p | |-- dev | |-- device -> ../../card0 | |-- pcm_class | |-- power | |-- subsystem -> ../../../../../../../class/sound |-- uevent |-- pcmC0D2p | |-- dev | |-- device -> ../../card0 | |-- pcm_class | |-- power | |-- subsystem -> ../../../../../../../class/sound | -- uevent |-- pcmC0D3p | |-- dev | |-- device -> ../../card0 | |-- pcm_class | |-- power | |-- subsystem -> ../../../../../../../class/sound |-- uevent |-- power | |-- async | |-- autosuspend_delay_ms | |-- control | |-- runtime_active_kids | |-- runtime_active_time | |-- runtime_enabled | |-- runtime_status | |-- runtime_suspended_time | -- runtime_usage |-- subsystem -> ../../../../../../class/sound-- uevent

!!HDA-Intel Codec information !!--------------------------- --startcollapse--

Codec: Intel Alderlake-P HDMI Address: 2 AFG Function Id: 0x1 (unsol 0) Vendor Id: 0x8086281c Subsystem Id: 0x80860101 Revision Id: 0x100000 No Modem Function Group found Default PCM: rates [0x0]: bits [0x0]: formats [0x0]: Default Amp-In caps: N/A Default Amp-Out caps: N/A State of AFG node 0x01: Power states: D0 D3 CLKSTOP EPSS Power: setting=D0, actual=D0, Clock-stop-OK GPIO: io=0, o=0, i=0, unsolicited=0, wake=0 Node 0x03 [Audio Output] wcaps 0x6611: 8-Channels Digital Converter: stream=0, channel=0 Digital: Enabled Digital category: 0x0 IEC Coding Type: 0x0 PCM: rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000 bits [0x1a]: 16 24 32 formats [0x5]: PCM AC3 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Node 0x04 [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x05 [Audio Output] wcaps 0x6611: 8-Channels Digital Converter: stream=0, channel=0 Digital: Enabled Digital category: 0x0 IEC Coding Type: 0x0 PCM: rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000 bits [0x1a]: 16 24 32 formats [0x5]: PCM AC3 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Node 0x06 [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x07 [Audio Output] wcaps 0x6611: 8-Channels Digital Converter: stream=0, channel=0 Digital: Enabled Digital category: 0x0 IEC Coding Type: 0x0 PCM: rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000 bits [0x1a]: 16 24 32 formats [0x5]: PCM AC3 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Node 0x08 [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x09 [Audio Output] wcaps 0x6611: 8-Channels Digital Converter: stream=0, channel=0 Digital: Enabled Digital category: 0x0 IEC Coding Type: 0x0 PCM: rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000 bits [0x1a]: 16 24 32 formats [0x5]: PCM AC3 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Node 0x0a [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x0b [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x0c [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x0d [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x0e [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 Node 0x0f [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x09000094: OUT Detect HBR HDMI DP Pin Default 0x18560010: [Jack] Digital Out at Int HDMI Conn = Digital, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D3 EPSS Power: setting=D0, actual=D0 Devices: 0 Connection: 0 --endcollapse--

!!ALSA Device nodes !!-----------------

crw-rw---- 1 root audio 116, 6 Nov 26 11:22 /dev/snd/controlC0 crw-rw---- 1 root audio 116, 5 Nov 26 11:22 /dev/snd/hwC0D2 crw-rw---- 1 root audio 116, 2 Nov 26 11:22 /dev/snd/pcmC0D1p crw-rw---- 1 root audio 116, 3 Nov 26 11:22 /dev/snd/pcmC0D2p crw-rw---- 1 root audio 116, 4 Nov 26 11:22 /dev/snd/pcmC0D3p crw-rw---- 1 root audio 116, 1 Nov 26 11:22 /dev/snd/seq crw-rw---- 1 root audio 116, 33 Nov 26 11:22 /dev/snd/timer

/dev/snd/by-path: total 0 drwxr-xr-x 2 root root 60 Nov 26 11:22 . drwxr-xr-x 3 root root 200 Nov 26 11:22 .. lrwxrwxrwx 1 root root 12 Nov 26 11:22 pci-0000:00:1f.3-platform-skl_hda_dsp_generic -> ../controlC0

!!Aplay/Arecord output !!--------------------

APLAY

**** List of PLAYBACK Hardware Devices **** card 0: sofhdadsp [sof-hda-dsp], device 1: HDMI1 () [] Subdevices: 1/1 Subdevice #0: subdevice #0 card 0: sofhdadsp [sof-hda-dsp], device 2: HDMI2 () [] Subdevices: 1/1 Subdevice #0: subdevice #0 card 0: sofhdadsp [sof-hda-dsp], device 3: HDMI3 (*) [] Subdevices: 1/1 Subdevice #0: subdevice #0

ARECORD

**** List of CAPTURE Hardware Devices ****

!!Amixer output !!-------------

!!-------Mixer controls for card sofhdadsp

Card sysdefault:0 'sofhdadsp'/'DellInc.-XPS1393152_in_1--03Y9WX' Mixer name : 'Intel Alderlake-P HDMI' Components : 'HDA:8086281c,80860101,00100000' Controls : 24 Simple ctrls : 6 Simple mixer control 'IEC958',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'IEC958',1 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'IEC958',2 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'PGA2.0 2 Master',0 Capabilities: pvolume Playback channels: Front Left - Front Right Limits: Playback 0 - 32 Mono: Front Left: Playback 32 [100%] [0.00dB] Front Right: Playback 32 [100%] [0.00dB] Simple mixer control 'PGA3.0 3 Master',0 Capabilities: pvolume Playback channels: Front Left - Front Right Limits: Playback 0 - 32 Mono: Front Left: Playback 32 [100%] [0.00dB] Front Right: Playback 32 [100%] [0.00dB] Simple mixer control 'PGA4.0 4 Master',0 Capabilities: pvolume Playback channels: Front Left - Front Right Limits: Playback 0 - 32 Mono: Front Left: Playback 32 [100%] [0.00dB] Front Right: Playback 32 [100%] [0.00dB]

!!Alsactl output !!--------------

--startcollapse-- state.sofhdadsp { control.1 { iface CARD name 'HDMI/DP,pcm=1 Jack' value false comment { access read type BOOLEAN count 1 } } control.2 { iface MIXER name 'IEC958 Playback Con Mask' value '0fff000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access read type IEC958 count 1 } } control.3 { iface MIXER name 'IEC958 Playback Pro Mask' value '0f00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access read type IEC958 count 1 } } control.4 { iface MIXER name 'IEC958 Playback Default' value '0400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access 'read write' type IEC958 count 1 } } control.5 { iface MIXER name 'IEC958 Playback Switch' value true comment { access 'read write' type BOOLEAN count 1 } } control.6 { iface PCM device 1 name ELD value '' comment { access 'read volatile' type BYTES count 0 } } control.7 { iface CARD name 'HDMI/DP,pcm=2 Jack' value false comment { access read type BOOLEAN count 1 } } control.8 { iface MIXER name 'IEC958 Playback Con Mask' index 1 value '0fff000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access read type IEC958 count 1 } } control.9 { iface MIXER name 'IEC958 Playback Pro Mask' index 1 value '0f00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access read type IEC958 count 1 } } control.10 { iface MIXER name 'IEC958 Playback Default' index 1 value '0400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access 'read write' type IEC958 count 1 } } control.11 { iface MIXER name 'IEC958 Playback Switch' index 1 value true comment { access 'read write' type BOOLEAN count 1 } } control.12 { iface PCM device 2 name ELD value '' comment { access 'read volatile' type BYTES count 0 } } control.13 { iface CARD name 'HDMI/DP,pcm=3 Jack' value false comment { access read type BOOLEAN count 1 } } control.14 { iface MIXER name 'IEC958 Playback Con Mask' index 2 value '0fff000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access read type IEC958 count 1 } } control.15 { iface MIXER name 'IEC958 Playback Pro Mask' index 2 value '0f00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access read type IEC958 count 1 } } control.16 { iface MIXER name 'IEC958 Playback Default' index 2 value '0400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000' comment { access 'read write' type IEC958 count 1 } } control.17 { iface MIXER name 'IEC958 Playback Switch' index 2 value true comment { access 'read write' type BOOLEAN count 1 } } control.18 { iface PCM device 3 name ELD value '' comment { access 'read volatile' type BYTES count 0 } } control.19 { iface PCM device 1 name 'Playback Channel Map' value.0 0 value.1 0 value.2 0 value.3 0 value.4 0 value.5 0 value.6 0 value.7 0 comment { access 'read write' type INTEGER count 8 range '0 - 36' } } control.20 { iface PCM device 2 name 'Playback Channel Map' value.0 0 value.1 0 value.2 0 value.3 0 value.4 0 value.5 0 value.6 0 value.7 0 comment { access 'read write' type INTEGER count 8 range '0 - 36' } } control.21 { iface PCM device 3 name 'Playback Channel Map' value.0 0 value.1 0 value.2 0 value.3 0 value.4 0 value.5 0 value.6 0 value.7 0 comment { access 'read write' type INTEGER count 8 range '0 - 36' } } control.22 { iface MIXER name 'PGA2.0 2 Master Playback Volume' value.0 32 value.1 32 comment { access 'read write' type INTEGER count 2 range '0 - 32' dbmin -9999999 dbmax 0 dbvalue.0 0 dbvalue.1 0 } } control.23 { iface MIXER name 'PGA3.0 3 Master Playback Volume' value.0 32 value.1 32 comment { access 'read write' type INTEGER count 2 range '0 - 32' dbmin -9999999 dbmax 0 dbvalue.0 0 dbvalue.1 0 } } control.24 { iface MIXER name 'PGA4.0 4 Master Playback Volume' value.0 32 value.1 32 comment { access 'read write' type INTEGER count 2 range '0 - 32' dbmin -9999999 dbmax 0 dbvalue.0 0 dbvalue.1 0 } } } --endcollapse--

!!All Loaded Modules !!------------------

ac97_bus acpi_pad acpi_tad acpi_thermal_rel aesni_intel af_alg ahci algif_hash algif_skcipher autofs4 binfmt_misc bluetooth bnep btbcm btintel btmtk btrtl btusb ccm cec cfg80211 clk_tps68470 cmac cmdlinepart coretemp crc32_pclmul crct10dif_pclmul cryptd crypto_simd dcdbas dell_laptop dell_smbios dell_wmi dell_wmi_ddv dell_wmi_descriptor dell_wmi_sysman drm drm_buddy drm_display_helper drm_kms_helper ecc ecdh_generic efi_pstore firmware_attributes_class ghash_clmulni_intel hi556 hid hid_generic hid_multitouch hid_sensor_accel_3d hid_sensor_als hid_sensor_custom hid_sensor_custom_intel_hinge hid_sensor_gyro_3d hid_sensor_hub hid_sensor_iio_common hid_sensor_magn_3d hid_sensor_rotation hid_sensor_trigger i2c_algo_bit i2c_hid i2c_hid_acpi i2c_i801 i2c_smbus i915 idma64 igen6_edac industrialio industrialio_triggered_buffer input_leds int3400_thermal int3403_thermal int340x_thermal_zone intel_cstate intel_hid intel_ish_ipc intel_ishtp intel_ishtp_hid intel_lpss intel_lpss_pci intel_powerclamp intel_rapl_common intel_rapl_msr intel_skl_int3472_discrete intel_skl_int3472_tps68470 ip_tables irqbypass iwlmvm iwlwifi joydev kfifo_buf kvm kvm_intel ledtrig_audio libahci libarc4 lp mac80211 mac_hid mc mei mei_hdcp mei_me mei_pxp msr mtd nls_iso8859_1 nvme nvme_common nvme_core parport parport_pc pinctrl_tigerlake polyval_clmulni polyval_generic ppdev processor_thermal_device processor_thermal_device_pci processor_thermal_mbox processor_thermal_rapl processor_thermal_rfim rapl rc_core regmap_sdw regmap_sdw_mbq rfcomm sch_fq_codel serio_raw sha512_ssse3 snd snd_compress snd_hda_codec snd_hda_codec_hdmi snd_hda_core snd_hda_ext_core snd_hda_intel snd_hwdep snd_intel_dspcfg snd_intel_sdw_acpi snd_pcm snd_pcm_dmaengine snd_rawmidi snd_seq snd_seq_device snd_seq_midi snd_seq_midi_event snd_soc_acpi snd_soc_acpi_intel_match snd_soc_core snd_soc_dmic snd_soc_hdac_hda snd_soc_hdac_hdmi snd_soc_intel_hda_dsp_common snd_soc_rt1316_sdw snd_soc_rt715_sdca snd_soc_skl_hda_dsp snd_sof snd_sof_intel_hda snd_sof_intel_hda_common snd_sof_pci snd_sof_pci_intel_tgl snd_sof_probes snd_sof_utils snd_sof_xtensa_dsp snd_timer soc_button_array soundcore soundwire_bus soundwire_cadence soundwire_generic_allocation soundwire_intel sparse_keymap spi_intel spi_intel_pci spi_nor syscopyarea sysfillrect sysimgblt thunderbolt tls tps68470_regulator ttm typec typec_ucsi ucsi_acpi uhid usbhid v4l2_async v4l2_fwnode v4l2loopback video videodev vmd wacom wmi wmi_bmof x86_pkg_temp_thermal x_tables xhci_pci xhci_pci_renesas

!!Sysfs Files !!-----------

/sys/class/sound/hwC0D2/init_pin_configs: 0x04 0x18560010 0x06 0x18560010 0x08 0x18560010 0x0a 0x18560010 0x0b 0x18560010 0x0c 0x18560010 0x0d 0x18560010 0x0e 0x18560010 0x0f 0x18560010

/sys/class/sound/hwC0D2/driver_pin_configs:

/sys/class/sound/hwC0D2/user_pin_configs:

/sys/class/sound/hwC0D2/init_verbs:

/sys/class/sound/hwC0D2/hints:

!!ALSA/HDA dmesg !!--------------

!!Packages installed !!--------------------

ii alsa-topology-conf 1.2.5.1-2 all ALSA topology configuration files ii alsa-ucm-conf 1.2.6.3-1ubuntu1.8 all ALSA Use Case Manager configuration files ii alsa-utils 1.2.6-1ubuntu1 amd64 Utilities for configuring and using ALSA

Linux n00b here, been using linux for many years but I'm a basic user. My next steps I believe is to try and install/configure pipewire. But I'm really not sure if it's a driver issue, or a configuration problem with pulseaudio and alsamixer.

Update 12/19/2023: Installing pipewire did not fix the issue. I've also consistently gotten a "System program problem detected" on boot, with no additional details. Unsure if issue is related.

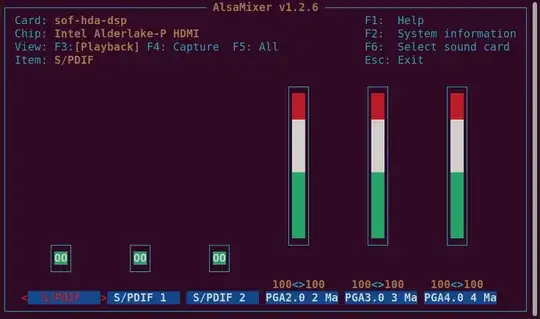

Edit- Alsa Mixer screenshot: enter image description here

Jam
  • 11
  • The reddit post mentions sof. On Ubuntu, I think the package should be firmware-sof-signed so have you tried installing this package? sudo apt update and sudo apt install firmware-sof-signed You can search available packages with something like apt-cache search sof and you can filter results using grep apt-cache search sof | grep sof or even better apt-cache search sof | grep SOF – mchid Nov 27 '23 at 14:43
  • Also, it usually helps to try this answer when you get a dummy output. The actions will replace any missing or messed up configuration files with the default configuration files in case you used to have it working and now it's not. There are other answers on the page that may or may not apply as well. – mchid Nov 27 '23 at 14:50
  • Thanks mchid, I did already try the firmware-sof-signed with no change, and I've done several re-installs of packages with no success including retrying a fresh install of Ubuntu. I'll edit in the alsamixer display and see if that provides any insights. – Jam Nov 28 '23 at 05:41
  • Same issue here. – CuriousGuy Feb 14 '24 at 13:28
  • I have the same problem. No audio output until I uninstall and reinstall pulse audio and then alsa force reload.

    sudo apt-get remove --purge alsa-base pulseaudio sudo apt-get install alsa-base pulseaudio sudo alsa force-reload

    But that only works until the next restart. Very annoying.

    – Matt West Feb 27 '24 at 14:20
  • Interestingly, the sound works under Linux Mint 21.3. Edge is required for the WiFi but the sound works on the 5.x kernel in the default installation. This is the second laptop I've had where sound works in Mint but not other Ubunutu-based distros. I've never understood why. – Matt West Feb 27 '24 at 18:29
