How can I create a new partition with mountpoint by splitting an existing partition?

Question

How can I split an existing partition (NTFS) to get space for a new partition and create a mountpoint for it?

dv3500ea · Accepted Answer · 2010-12-14T18:25:46.540

7

You need to boot from a live CD or USB and use gparted to partition your drive. It should be called something like Partition Manager in the System->Administration menu.

Read through this tutorial for gparted - it should tell you everything you need to be able to:

Shrink the partition
Create a new partition in the free space created by this action

You should take a note of the device path of the partition you create (eg. /dev/sda5). To mount this drive you can run this command:

sudo mount -t ext4 /dev/sda5 /path/to/mountpoint

Replace ext4 with the file system type, /dev/sda5 with the device path you noted down and /path/to/mountpoint with the file path you want it to be mounted to.

To permanently mount this partition, you need to edit /etc/fstab. Before you do, make a copy to back it up in case you mess it up somehow. To edit /etc/fstab, press Alt+F2 and enter gksudo gedit /etc/fstab. This will prompt you for your password and then open the file in the text editor.

Once opened, add this line to the end of the file:

/dev/sda5       /home           ext4    defaults        0       2

but obviously you need to use your specific information instead. Once you have done this, save and close the file. The partition will now be mounted to the specified path every time you start up the computer.

edited Dec 14 '10 at 18:25

answered Dec 14 '10 at 18:18

dv3500ea

37,204

which directory is typically taken for the /path/to/mountpoint. mnt or better ? especially under the aspect that i want to move my home directory to the new partition? – NES Dec 14 '10 at 18:27
Do you mean your personal /home/user or the general /home to be on the new partition? – dv3500ea Dec 14 '10 at 18:30
probably /home would be better i think – NES Dec 14 '10 at 18:33
1

Use /home instead of /path/to/mountpoint, but make sure you move the contents of /home to the new partition first. Use the /etc/fstab method to make it permanent. – dv3500ea Dec 14 '10 at 18:35
one question still, which partitioning algorithms use ubuntu during he installation, are they available as a standalone application or command? is this gparted? – NES Dec 14 '10 at 18:38
I don't know. As far as I know the installer uses the same method as gparted. Perhaps you could ask this as a separate question. – dv3500ea Dec 14 '10 at 19:06
Yes, thanks so far. Will create a new question. – NES Dec 14 '10 at 19:42
The installer doesn't use GParted, although both use libparted for some functionality. – JanC Dec 14 '10 at 20:00

score 4 · Answer 2 · edited Mar 11 '17 at 22:07

Install gparted
After installation you can find it under System>>Administration>>Gparted.
Right click and unmount your NTFS partition first.(In my case i have used /dev/sda6)

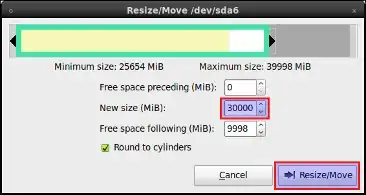

Select your NTFS partition and then right click on it and then choose Resize/Move.
For example i have maximum size of 39998 MB.
So now i am giving 30000 MB

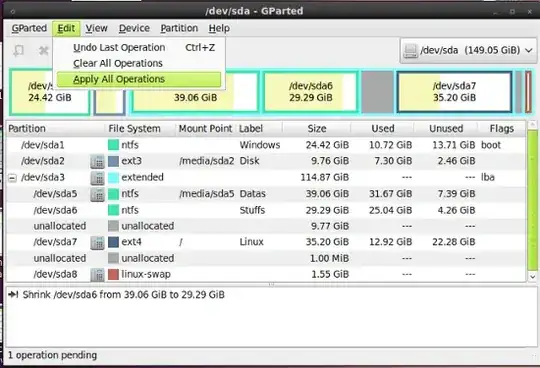

Now goto Edit and choose Apply all Operations.
After few minutes the opration will get completed.
Now you will see unallocated space of 9.77 GB
Right click on the unalloacated space and select New to create new partition.
Now you are done.

Note:

To learn more about Gparted,you can have a look at this tutorial.
