-1

I installed Ubuntu 12.10 on my Thinkpad T400 ... but I have no sound and the keyboard buttons for volume up and down do nothing. When I open sound settings, there's nothing: it's all greyed out. It is like the driver is missing.

Alsamixer gives :

card :HDA Intel
chip: Conexant CX20561 (Hermosa)

What can I do?

T400:~$ sudo aplay -l

**** Liste des Périphériques Matériels PLAYBACK ****
Home directory /home/louisro not ours.
carte 0: Intel [HDA Intel], périphérique 0: CONEXANT Analog [CONEXANT Analog]
  Sous-périphériques: 1/1
  Sous-périphérique #0: subdevice #0
carte 0: Intel [HDA Intel], périphérique 1: Conexant Digital [Conexant Digital]
  Sous-périphériques: 1/1
  Sous-périphérique #0: subdevice #0

T400:~$ lspci -v | grep -iA 7 'audio'

00:1b.0 Audio device: Intel Corporation 82801I (ICH9 Family) HD Audio Controller (rev 03)
Subsystem: Lenovo Device 20f2
Flags: bus master, fast devsel, latency 0, IRQ 49
Memory at fc020000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: snd_hda_intel
Kernel modules: snd-hda-intel

enter image description here

In the upper bar the sound icon is not functionning: enter image description here

The sound works out of the box with a live USB ubuntu with /etc/modprobe.d/alsa-base.conf containing the following:

# autoloader aliases
install sound-slot-0 /sbin/modprobe snd-card-0
install sound-slot-1 /sbin/modprobe snd-card-1
install sound-slot-2 /sbin/modprobe snd-card-2
install sound-slot-3 /sbin/modprobe snd-card-3
install sound-slot-4 /sbin/modprobe snd-card-4
install sound-slot-5 /sbin/modprobe snd-card-5
install sound-slot-6 /sbin/modprobe snd-card-6
install sound-slot-7 /sbin/modprobe snd-card-7

# Cause optional modules to be loaded above generic modules
install snd /sbin/modprobe --ignore-install snd $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist snd-ioctl32 ; /sbin/modprobe --quiet --use-blacklist snd-seq ; }
#
# Workaround at bug #499695 (reverted in Ubuntu see LP #319505)
install snd-pcm /sbin/modprobe --ignore-install snd-pcm $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist snd-pcm-oss ; : ; }
install snd-mixer /sbin/modprobe --ignore-install snd-mixer $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist snd-mixer-oss ; : ; }
install snd-seq /sbin/modprobe --ignore-install snd-seq $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist snd-seq-midi ; /sbin/modprobe --quiet --use-blacklist snd-seq-oss ; : ; }
#
install snd-rawmidi /sbin/modprobe --ignore-install snd-rawmidi $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist snd-seq-midi ; : ; }
# Cause optional modules to be loaded above sound card driver modules
install snd-emu10k1 /sbin/modprobe --ignore-install snd-emu10k1 $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist snd-emu10k1-synth ; }
install snd-via82xx /sbin/modprobe --ignore-install snd-via82xx $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist snd-seq ; }

# Load saa7134-alsa instead of saa7134 (which gets dragged in by it anyway)
install saa7134 /sbin/modprobe --ignore-install saa7134 $CMDLINE_OPTS && { /sbin/modprobe --quiet --use-blacklist saa7134-alsa ; : ; }
# Prevent abnormal drivers from grabbing index 0
options bt87x index=-2
options cx88_alsa index=-2
options saa7134-alsa index=-2
options snd-atiixp-modem index=-2
options snd-intel8x0m index=-2
options snd-via82xx-modem index=-2
options snd-usb-audio index=-2
options snd-usb-caiaq index=-2
options snd-usb-ua101 index=-2
options snd-usb-us122l index=-2
options snd-usb-usx2y index=-2
# Ubuntu #62691, enable MPU for snd-cmipci
options snd-cmipci mpu_port=0x330 fm_port=0x388
# Keep snd-pcsp from being loaded as first soundcard
options snd-pcsp index=-2
# Keep snd-usb-audio from beeing loaded as first soundcard
options snd-usb-audio index=-2
louis
  • 51

2 Answers2

1

Driver is ok.

Open alsamixer, make sure your output channels are not muted. Press the left and right arrow keys, to move to different channels and press m to toggle mute / unmute. A "M/M" at the bottom of a column means it's muted

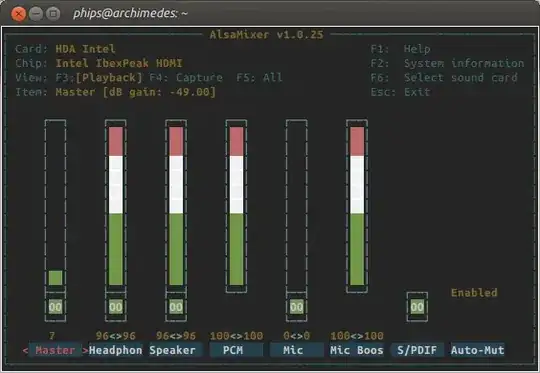

It should look kinda like this:

alsamixer screenshot

phipsalabim
  • 2,640
  • thanks but I checked and they were not muted...still no sound – louis Feb 21 '13 at 20:26
  • 1
    try: /usr/bin/amixer -c 0 sset "Auto-Mute Mode" Disabled – phipsalabim Feb 21 '13 at 20:39
  • run: gksudo gedit /etc/modprobe.d/alsa-base.conf and add this line options snd-hda-intel model=thinkpad. You will have to reboot. If that doesn't help try resetting your BIOS to factory defaults. – phipsalabim Feb 21 '13 at 21:05
  • I did the auto-mute command and added the line in the alas-base.conf file, still no sound ! I also reset the bios to factory settings ...still nothing, any other ideas? – louis Feb 21 '13 at 23:16
  • Full disclosure: I'm stumbling in the dark. Please try changing the line in the conf file to option snd-hda-intel model=generic, reboot. – phipsalabim Feb 21 '13 at 23:25
  • or possibly: option snd-hda-intel model=thinkpad power_save=0 power_save_controller=N. But it feels like a hardware failure. – phipsalabim Feb 21 '13 at 23:38
  • I guees that you meant "options" instead of "option"....I tried those but still the same.... – louis Feb 22 '13 at 08:42
  • I is not hardware failure because it works out of the box with a live USB ubuntu. – louis Feb 22 '13 at 09:02
  • Try reinstalling everything alsa related libasound alsa-oss etc, or upgrading alsa. I'm out of ideas. Sorry. – phipsalabim Feb 22 '13 at 10:55
  • I just reinstalled everything alsa related...no I have sound, but I stille can't control it (the icon is not functional in the upper right corner) – louis Feb 22 '13 at 12:14
  • you have sound now? That's awesome. Try: sudo apt-get install --reinstall indicator-sound, then killall unity-panel-service. Do your sound control keys work? You might have to restart pulseaudio: pulseaudio -k – phipsalabim Feb 22 '13 at 12:29
  • yes I have sound now . But I have strange errors on $ pulseaudio -k E: [pulseaudio] core-util.c: Failed to create secure directory: Permission not granted E: [pulseaudio] main.c: Impossible to kill the daemon  : Permission not granted – louis Feb 22 '13 at 18:15
  • sudo apt-get install --reinstall pulseaudio – phipsalabim Feb 22 '13 at 18:18
  • Hi....my /home was mounted from a separate partition, and this partition was ntfs, so there was permissions problems...Now I formatted this partition to ext4....and the sound works! – louis Feb 22 '13 at 20:47
0

My /home is mounted from a separate partition, and this partition was ntfs, so there was permissions problems...Now I formatted this partition to ext4....and the sound works!

louis
  • 51
