Ubuntu 14.04 Unknown Display

Question

I have installed Ubuntu 14.04 in my machine(with Gigabyte motherboard), having an Acer 19" Monitor. Unfortunately its resolution not working properly. See the image.

enter image description here

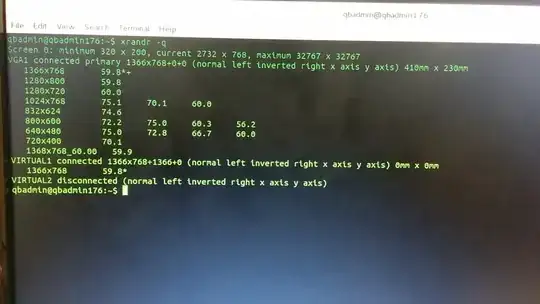

This is my xrandr -q output.

enter image description here

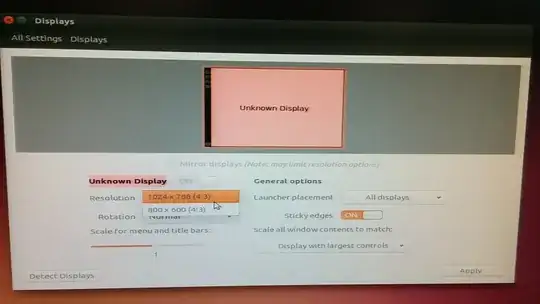

But when I take system settings for adjusting display it shows unknown display and only two resolutions available on the drop down as given in the picture.

enter image description here

Please let me know if you need any input from my side.

Thanks in advance.

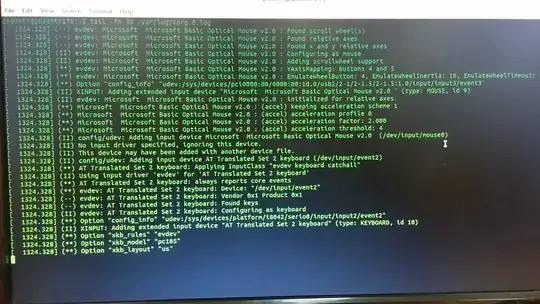

Please help me to correct the display resolution as I am a beginner to Linux and Ubuntu. This is my last 30 lines of /var/log/Xorg.0.log

enter image description here

The result of running sudo lspci | grep VGA is as follow.

00:02.0 VGA compatible controller: Intel Corporation Xeon E3-1200 v2/3rd Gen Core processor Graphics Controller (rev 09)

I think it's a problem with your graphics driver, not monitor. What's your video card model? — user300458, Sep 30 '14 at 04:34
I don't have any graphics card installed on my system. Is there anything else you required from my side ? like any terminal command output ? — Uvais Ibrahim, Sep 30 '14 at 04:49
What kernel version are you using? this comment makes me ask — Grizly, Sep 30 '14 at 07:23
@UvaisIbrahim I do have the same issue. Did you get a perfect solution?? — Anoop Sankar, Mar 17 '20 at 17:15

ininn · Answer 1 · 2015-04-01T07:43:04.110

2

I found this on the Arch Distro BBS maybe it can help: Intel HD Graphics 4600 driver works as Intel Xeon E3-1200

You might try installing the Intel-microcode package as well. You are most likely utilizing the Intel Processor's GPU, without knowing what model Mother Board you have.

edited Apr 01 '15 at 07:43

answered Apr 01 '15 at 07:25

ininn

21

sudo apt-get install intel-microcode && sudo reboot helped me. – norbitwise Jun 24 '15 at 22:40

score 1 · Answer 2 · answered Aug 16 '17 at 17:52

1

This might help someone.

Try a better VGA cable.

A poor quality VGA cable often causes this kind of problem. I've recently stumbled upon this strange problem and couldn't able to find a reasonable cause for this issue in Ubuntu (In 16.04.2 for me).

Cable type which worked for me : HOTRON E246588 AWM style 20276 VW-1 80°C 30V

answered Aug 16 '17 at 17:52

Vikas Swami

81

Thank you for this response. I ran into this problem. I was in the settings for 20 minutes and entered a few things in the command line. I began to think I needed a new monitor. Then I read this and found the connection to the VGA extension cable was just barely hanging on. Plugged it in properly and "bingo!" problem solved. Thank You! – OnePuttMike Jan 26 '19 at 07:53
1

@OnePuttMike I am glad it helped you. – Vikas Swami Jan 28 '19 at 16:53

score 0 · Answer 3 · answered Sep 30 '14 at 04:03

0

Have you tried updating and upgrading your system sudo apt-get update && sudo apt-get upgrade?

Also try going to Software and Updates -> Additional Drivers and changing the display driver.

answered Sep 30 '14 at 04:03

Yes. I have already ran sudo apt-get update && sudo apt-get upgrade. But didn't help. Also there is no any software updates for this time. – Uvais Ibrahim Sep 30 '14 at 04:11
What dies Additional Drivers show? – Sep 30 '14 at 04:12
It says No additional drivers available. – Uvais Ibrahim Sep 30 '14 at 06:37
Does your login screen look the same way? – Sep 30 '14 at 14:17
Yes. Login screen also looks the same way. – Uvais Ibrahim Oct 01 '14 at 02:56
1

Did you chose the option to install updates upon installation? – Oct 01 '14 at 13:44

score 0 · Answer 4 · answered Sep 30 '14 at 05:28

0

just going to Software and Updates then additional drivers and change the driver by chose the most recent and stable one.

answered Sep 30 '14 at 05:28

hermest

54

On Software and Updates, in additional drivers tab, it says No additional drivers available. – Uvais Ibrahim Sep 30 '14 at 06:39

score 0 · Answer 5 · edited Mar 01 '15 at 04:18

0

Try this solution.

Use sudo apt-get install nvidia-331 nvidia-settings nvidia-prime and then reboot. You can use application named nvidia x server to configure the display.

edited Mar 01 '15 at 04:18

Flyk

1,480

answered Mar 01 '15 at 03:01

leaf

1
