Share internet over ethernet

Question

I have two wired connections of which the first has internet via static IPv4 and gateway and the second connects to another network.

I want to share internet from first connection over second connection with a different IP-address.

That is posible. And not hard to do. So what did you already try and where did you run into problems? — Hennes, Jun 07 '15 at 13:44
I edit erh0 to ipv4=85.185.254.69,255.255.255.0,85.185.254.66 which have internet from network 1 and want to share this internet connection to eth1 into another network with ip range 185.185.185.1 — sajadsarlak, Jun 07 '15 at 14:05
Step 1: Configure eth1 with the new network range.
Step 2: Confitgure other computers on this network and test/ping. They will use NIC2 on computer 1 (185.185.185.1) as gateway.

Step 3) Now you need to forward packets between the two interfaces. Your computer does this based on its routing table. If that does not for check if ipforwarding is enabled. (sysctl net.ipv4.ip_forward should return 1. If it returns 0 then use echo 1 > /proc/sys/net/ipv4/ip_forward or sysctl -w net.ipv4.ip_forward=1). — Hennes, Jun 07 '15 at 14:08
[SOLVED] step 1: eth0 configurated to ipv4=85.185.254.69,255.255.255.0,85.185.254.66,dns=4.2.2.4. step 2: eth1 configurated to ipv4=185.185.185.1,255.255.255.0,85.185.254.69. step 3: Restart ubuntu. step 4: open terminal and run : sudo bash -c 'echo 1 > /proc/sys/net/ipv4/ip_forward' sudo iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE sudo iptables -A FORWARD -i eth0 -o eth1 -m state --state RELATED,ESTABLISHED -j ACCEPT sudo iptables -A FORWARD -i eth1 -o eth0 -j ACCEPT — sajadsarlak, Jun 07 '15 at 16:04
@sajadsarlak - if you add that as a answer so it readable, it will help future users who need help - it can also get upvoted too :) — Wilf, Jun 07 '15 at 16:14
Aye. And a bit of explanation. E.g. why use MASQUERADE when you seem to have regular puplic IPs? — Hennes, Jun 07 '15 at 17:41
Related: https://askubuntu.com/questions/3063/share-wireless-connection-with-wired-ethernet-port — Ciro Santilli OurBigBook.com, Feb 08 '24 at 11:48

score 4 · Answer 1 · edited Dec 01 '17 at 21:08

I managed to solve this myself. Here are the steps:

eth0 configured like this

ipv4=85.185.254.69,255.255.255.0,85.185.254.66,dns=4.2.2.4.

eth1 configured like this:

ipv4=185.185.185.1,255.255.255.0,85.185.254.69.

Restart ubuntu.

Open terminal and run:

sudo bash -c 'echo 1 > /proc/sys/net/ipv4/ip_forward'
sudo iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
sudo iptables -A FORWARD -i eth0 -o eth1 -m state --state RELATED,ESTABLISHED -j ACCEPT
sudo iptables -A FORWARD -i eth1 -o eth0 -j ACCEPT

sudo bash -c 'iptables-save > /etc/iptables/rules.v4'
sudo bash -c 'iptables-restore < /etc/iptables/rules.v4'

score 3 · Answer 2 · edited Dec 01 '17 at 21:10

Edit /etc/sysctl.conf (for example using sudoedit /etc/sysctl.conf) and search for the following lines:

# Uncomment the next line to enable packet forwarding for IPv4
#net.ipv4.ip_forward=1

And uncomment net.ipv4.ip_forward=1 by removing the # at the start of the line:

# Uncomment the next line to enable packet forwarding for IPv4
net.ipv4.ip_forward=1

Or, to do this in a one line command:

sudo sysctl -w net.ipv4.ip_forward=1

Devolutheist · Answer 3 · 2018-11-20T08:36:42.280

You could've done it easier than this. If your internet connection is established via some sort of routing device you can just make a VLAN for the connection you want to share internet with to make it to have access to the router subnet.

https://wiki.ubuntu.com/vlan

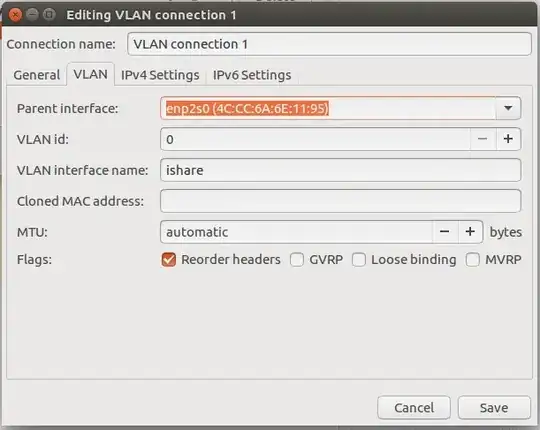

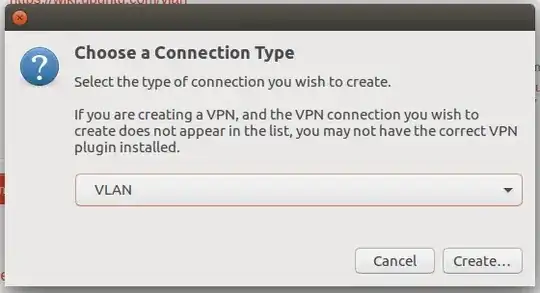

You can do this in Network Manager GUI easily. Afaik it is available outta box.

Parent device is the interface you want to share internet with. After that go to IPv4 settings and set an IP address for it from the router DHCP range. Voila. You got yourself a shared internet connection.
