I could not get my Subwoofer on Lenovo Y50 to work. Googled around and did not find any solutions. Let me know if anybody has any clue. Thanks!

Ping
  • 33

4 Answers4

1

I got my Y50-70 sub-woofer working by doing this:

in /etc/pulse/default.pa add this line at the end:

load-module module-combine channels=3 channel_map=front-left,front-right,lfe

then in /etc/pulse/daemon.conf change ;enable-lfe-remixing = no to enable-lfe-remixing = yes note that you have to remove the ;

then reboot.

Tested and validated on Kubuntu 15.04.

muru
  • 197,895
  • 55
  • 485
  • 740
Luis Pérez
  • 11
  • the daemon.conf file seams to be empty – this.foo Jul 30 '15 at 10:59
  • Same here. No deamon.conf file. I am using Ubuntu 14.04.2 LTS. Should I update to Ubuntu 15.04? – Ping Jul 31 '15 at 17:17
  • if you want to, but it maybe don't be the solution, you can try. If you do it, don't forget do a back backup... I don't know why the daemon.conf is empty , ¿did you use root privileges when you edit the the daemon.conf ?. Sorry i can't help you more. – Luis Pérez Aug 13 '15 at 01:49
  • Hmm... this seems not work on Ubuntu 14.04 did anybody test this on Ubuntu 15.04 maybe it will be time for upgrade system ;) – BaronBaleron Sep 08 '15 at 20:32
1

This is what worked for me:

first, install and run HDA Analyzer:
wget -O run.py http://www.alsa-project.org/hda-analyzer.py
sudo python run.py (root is required)

second, using the gui do this:
•PIN 0x17 -> Widget Control -> Check OUT and Uncheck Mute:
enter image description here

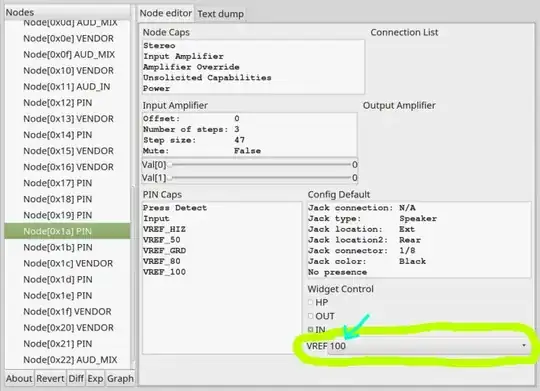

•PIN 0x1a -> VREF -> Set it to 100:
enter image description here

And third, test it by listening to some music.
If it still isn't working, you can follow this thread, maybe someone will find an answer:
(https://superuser.com/questions/945110/how-do-i-make-my-lenovo-y50s-subwoofer-work-on-linux)

HDA Analyzer can be found here: http://www.alsa-project.org/main/index.php/HDA_Analyzer

Community
  • 1
this.foo
  • 447
  • 2
  • 5
  • 17
  • Thank You for the useful info. According to similar problems on other laptops [ex. https://www.reddit.com/r/linux/comments/17sov5/howto_beats_audio_hp_laptop_speakers_on/] i tried use hda-jack-retask to mapping this pins as a subwoofer but it's seems to be more complicated there is two pins as one subwoofer... I can't figure out. Not luck for me but maybe You will try. I think Yoou can have some better knowlege / ideas in this case. Cheers! – BaronBaleron Sep 08 '15 at 20:19
  • Note that run.sh should be executed with python2. – miyalys Sep 19 '15 at 14:40
  • @ShupingRuan That's Great. Are you running Ubuntu or something else? Also please check the answer as the right one if it worked and consider upvoting it if it was Informative. Thank you. – this.foo Sep 24 '15 at 15:40
  • Ohhh, thanks a lot. Since I installed Ubuntu I forgot that this laptop actually has a nice sound system. – Anti Nov 11 '17 at 20:50
1

In the referenced Super User question and its recent followup, we managed to get it to work, and you can do it all by:

First installing alsa-tools (which contains hda-verb)
and then executing this shell script as root:

#! /usr/bin/env sh

# Run this script as root!

dev="/dev/snd/hwC1D0"

hda-verb $dev 0x17 SET_POWER 0x0
hda-verb $dev 0x1a SET_POWER 0x0
hda-verb $dev 0x03 0x300 0xa055
hda-verb $dev 0x03 0x300 0x9055
hda-verb $dev 0x17 0x300 0xb000
hda-verb $dev 0x17 0x707 0x40
hda-verb $dev 0x1a 0x707 0x25

Side note: Actually it can also be done without hda-verb, using python alone (which hda analyzer can export), but the code would be considerably more messy.

If you want to do it more manually for some reason, here's how:

Install alsa-tools via apt-get or similar.

Get HDA Analyzer like this:
wget -O run.py http://www.alsa-project.org/hda-analyzer.py

Side note: hda-analyzer will only run correctly on your machine if python is a symlink to python2, which it normally is, but there are exceptions. (Arch linux, at least.)

Run HDA Analyzer:
python run.py

Inside HDA Analyzer, look under card 1.

Changes to node 0x17:
Untick Val[0]: Mute
Tick Out under Widget Control.

Changes to node 0x1a
Set VREF under Widget control to 100 instead of hiz.

Quit hda_analyzer.

Run these two hda-verb commands, again as root:

hda-verb /dev/snd/hwC1D0 0x17 SET_POWER 0x0
hda-verb /dev/snd/hwC1D0 0x1a SET_POWER 0x0

Start hda_analyzer again.

Increase the output volume of node 0x3 (AUD_OUT) on card 1:
In HDA Analyzer under Output amplifier push the Val[0] and Val[1] sliders towards the right. They may need to be almost all the way over to the right before you can hear the difference.

Here's a low frequency audio file you can use for testing.

You can test it by plugging something into the headphone plug, as the subwoofer is unaffected by that being plugged in unlike the normal speakers, at least after the above is changed. That problem is unfortunately not solved by the shell script either.

Community
  • 1
miyalys
  • 172
  • after shell scripts executed the output volume set to 100% this is very annoyng. any ways to fix this? – Alex0007 Apr 03 '16 at 21:30
0

Try setting lfe-crossover-freq = 0 in /etc/pulse/daemon.conf
