I am currently changing between my laptop and my external monitor with the NVidia X Server Settings program and I'm sure I'm doing it in a really dumb way:

I currently select the external monitor, set it from "Disabled" to "TwinView", then then select the laptop screen and change it to "Disabled". Then I press "Apply" and it's done. I do this in reverse when I need to disconnect.

It's the only way I've managed to switch monitors (both VGA and DisplayPort connections on my ThinkPad), and it's a really fiddly process which I have to perform multiple times per day.

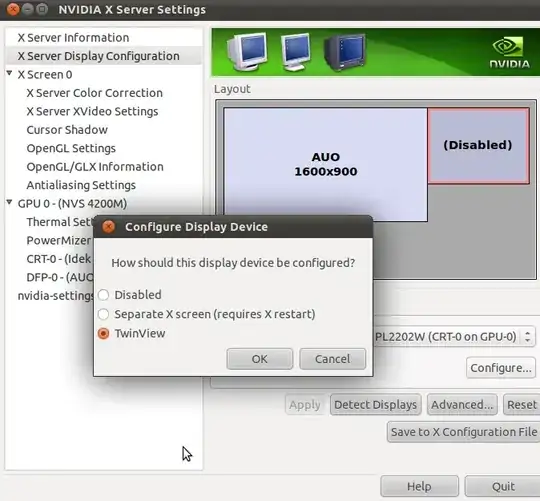

enter image description here

However I really want to be able to switch with Fn-F8 or some other keyboard shortcut but this doesn't appear to work with any connection method. Is there anything better than I can do?

Jorge Castro
  • 71,754
YXD
  • 1,099
  • I've wrestled with this issue too. I know that my Fn-F5 (or whatever it is) keyboard shortcut works in the rare occasion when I boot into windows. So, for at least some laptops, this keyboard shortcut works through software, not hardware. – Firefeather Oct 12 '11 at 19:10
  • Fn-F5 turns wifi on and off, Fn-F8 enables and disables the touchpad it seems... – YXD Oct 12 '11 at 21:18
  • Can you please add your xorg.conf file? – Bruno Pereira Oct 13 '11 at 00:55
  • @brunopereira81 : http://pastebin.com/QC4UnBve – YXD Oct 13 '11 at 23:09
  • Excellent, I just used the disper (disper --direction=left -e) and able to move the external display to left side. Good tool to have in place for developer and gaming enthusiasts. – Nagendhiran Oct 12 '13 at 07:13

3 Answers3

6

The nvidia tool nvidia-settings can be used from command line, but is not capable to activate or deactivate screens. xrandr is not supported by the propietary NVIDIA-drvers.

To switch displays you can use the tool disper: disper on launchpad It's a command line tools, wich exactly fits your problem an is easy to use.

Some example scripts for automatic switching at startup can be found here: Ubuntuusers.de wiki

I use these scripts to switch my monitors. It works perfectly.

bdr529
  • 2,978
  • Thanks, I'm away from the office until next week but I'll give it a try then. – YXD Oct 13 '11 at 23:10
  • disper is in the repositories as of Trusty (14.04) and Xenial (16.04), so it can be installed via sudo apt-get install disper. Unfortunately, that's no longer true in Focal (20.04). What a pity! – lbo Jun 03 '20 at 08:20
0

You can use autorandr.

Auto-detect the connect display hardware and load the appropiate X11 setup using xrandr or disper

Automatically select a display configuration based on connected devices

See also:

Community
  • 1
landroni
  • 5,941
  • 7
  • 36
  • 58
0

You may be able to map a key to that function manually. IIRC there is an Icon in System settings called "Keyboard Shortcuts", if there is an option there to switch monitors or displays, then map that to the key combination you require.

b1ackcrow
  • 137
