How do I write a Unity system indicator in Python?

Question

Background:

• This is NOT for application-indicators but system-indicators.

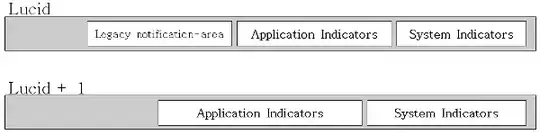

  Picture from: https://wiki.ubuntu.com/DesktopExperienceTeam/ApplicationIndicators

• The objective is to show indicator-sysmonitor in Greeter/Lock/Ubiquity screens. There is a work around in:

  How to make indicator-sysmonitor as a default indicator on the login screen

C Original Code: (working fine)

• I already get one working in C language, see my other question:

  How to develop a System Indicator for Unity?

  However, indicator-sysmonitor is already developed in Python as many other application indicators. I don't like the idea that developers obliged to port their projects to C or write a Python-C proxy if they want to show the indicator in greeter/lock/ubiquity screens. Instead, making indicator-sysmonitor creates a system indicator directly from python would be the best solution (no workarounds, and it will be a generic solution for all python projects that currently using appindicator).

Python Code: (My failed trial to port c code to python)

• I'm struggling to port it into Python. Here is my current code which doesn't work. It does create DBus object for both Menu & Actions. It is listed in the XFCE indicators plugin. But not showed on the panel.

  /usr/lib/indicator-test/indicator-test-service

  #!/usr/bin/python2

  import os
  import sys

  import gi
  from gi.repository import Gio, GLib

  APPLICATION_ID = 'local.sneetsher.indicator.test'
  DBUS_MENU_PATH = '/local/sneetsher/indicator/test/desktop'
  DBUS_ACTION_PATH = '/local/sneetsher/indicator/test'

  def callback():
      print ok

  def quit_callback(notification, loop):
      global connection
      global exported_action_group_id
      global exported_menu_model_id

      connection.unexport_action_group (exported_action_group_id)
      connection.unexport_menu_model (exported_menu_model_id)

      loop.quit()

  def cancel (notification, action, data):
      if action == "cancel":
          print "Cancel"
      else:
          print "That should not have happened (cancel)!"

  def bus_acquired(bus, name):
      # menu
      submenu = Gio.Menu()
      submenu.append("Show", "show")
      item = Gio.MenuItem.new(None, "_header")
      item.set_attribute([("x-canonical-type","s","com.canonical.indicator.root")])
      item.set_submenu(submenu)
      menu = Gio.Menu()
      menu.append_item (item)

      actions = Gio.SimpleActionGroup.new()
      action1 = Gio.SimpleAction.new("_header", None)
      actions.insert(action1)
      action2 = Gio.SimpleAction.new('show', None)
      actions.insert(action2)
      action2.connect("activate",callback)

      global connection
      connection = bus

      global exported_action_group_id
      exported_action_group_id = connection.export_action_group(DBUS_ACTION_PATH, actions)

      global exported_menu_model_id
      exported_menu_model_id = connection.export_menu_model(DBUS_MENU_PATH, menu)

  def setup ():
      #bus connection
      Gio.bus_own_name(Gio.BusType.SESSION, APPLICATION_ID, 0, bus_acquired, None, None)

  if __name__ == '__main__':

      connection = None
      exported_menu_model_id = 0
      exported_action_group_id = 0
      password = ""

      loop = GLib.MainLoop()
      setup ()

      loop.run()


  local.sneetsher.indicator.test

  [Indicator Service]
  Name=indicator-test
  ObjectPath=/local/sneetsher/indicator/test

  [desktop]
  ObjectPath=/local/sneetsher/indicator/test/desktop

  [desktop_greeter]
  ObjectPath=/local/sneetsher/indicator/test/desktop

  [desktop_lockscreen]
  ObjectPath=/local/sneetsher/indicator/test/desktop


  local.sneetsher.indicator.test.service

  [D-BUS Service]
  Name=local.sneetsher.indicator.test
  Exec=/usr/lib/indicator-test/indicator-test-service


  90_unity-greeter.gschema.override

  [com.canonical.unity-greeter]
  indicators=['ug-accessibility', 'com.canonical.indicator.keyboard', 'com.canonical.indicator.session', 'com.canonical.indicator.datetime', 'com.canonical.indicator.power', 'com.canonical.indicator.sound', 'local.sneetsher.indicator.test', 'application']


Question:

I expect the reason why, I didn't create the menu structure or its meta (pseudo items like _header) as they are in the original C code.

Could anyone make a working port of this system indicator code in C to Python?

Answer 1

I've just uploaded a raw "working" Python example ported from the @user.dz C example. Here's the source code repository:

• github.com/marto-ales/systemindicator

I will update it as I go along but any contribution is welcome.

Thanks for the useful information!

---

Ported source code of the main script. Note: It is initial copy as link may broke in future. For complete package and last update, follow the link above.

#!/usr/bin/python3
import sys
import os
import logging
import logging.handlers
logger = logging.getLogger('LoginHelper')
logger.setLevel(logging.DEBUG)
handler = logging.handlers.SysLogHandler(address = '/dev/log')
logger.addHandler(handler)
logger.debug("Login-Helper: Start")
os.environ["DISPLAY"] = ":0"
import gi
gi.require_version('Gtk', '3.0')
from gi.repository import Gtk
from gi.repository import Gio
from gi.repository import GLib
class LoginHelperIndicator():
def init(self, dbus_name, dbus_path):
    self.dbus_name = dbus_name
    self.dbus_path = dbus_path
    self.actions = Gio.SimpleActionGroup()
    self.menu = Gio.Menu()
    self.actions_export_id = 0
    self.menu_export_id = 0
def activate_about (self, action, parameter):
    # gtk_show_about_dialog(NULL,
    #                       "program-name", PROJECT_NAME,
    #                       "title", "About " PROJECT_NAME,
    #                       "version", PROJECT_VERSION_MAJOR "." PROJECT_VERSION_MINOR,
    #                       "license_type", GTK_LICENSE_GPL_3_0,
    #                       "wrap_license", TRUE,
    #                       "website", "https://github.com/sneetsher/mysystemindicator",
    #                       "website_label", "https://github.com/sneetsher/mysystemindicator",
    #                       "logo_icon_name", "indicator-" SHORT_NAME,
    #                       NULL);
    # g_message ("showing about dialog");
    pass
def activate_private (self, action, parameter):
    #g_message ("clicked private menu entry");
    pass
def activate_exit (self, action, parameter):
    #g_message ("exit the program");
    Gtk.main_quit()
def on_bus_acquired (self, connection, name):
    logger.debug ('Bus acquired: ' + str(connection))
    error = None
    item = Gio.MenuItem()
    submenu = Gio.Menu()
action_state = GLib.Variant("a{sv}", {
  'label': GLib.Variant("s", "Login-helper"),
  'icon':  GLib.Variant("s", "indicator-loginhelper"),
  'accessible-desc': GLib.Variant("s", "Login Helper indicator")
})
self.actions.add_action(Gio.SimpleAction.new_stateful("_header", None, action_state))
about_action = Gio.SimpleAction.new("about", None)
about_action.connect("activate", self.activate_about)
self.actions.add_action(about_action)
private_action = Gio.SimpleAction.new("private", None)
private_action.connect("activate", self.activate_private)
self.actions.add_action(private_action)
exit_action = Gio.SimpleAction.new("exit", None)
exit_action.connect("activate", self.activate_exit)
self.actions.add_action(exit_action)

submenu.append("About", "indicator.about")
submenu.append("Exit", "indicator.exit")
item = Gio.MenuItem().new(None, "indicator._header")
item.set_attribute_value("x-canonical-type", GLib.Variant("s", "com.canonical.indicator.root"))
item.set_submenu(submenu)

self.menu = Gio.Menu.new()
self.menu.append_item(item)

self.actions_export_id = connection.export_action_group(self.dbus_path, self.actions)
if self.actions_export_id == 0:
  #g_warning ("cannot export action group: %s", error->message);
  #g_error_free (error);
  return

self.menu_export_id = connection.export_menu_model(self.dbus_path + "/greeter", self.menu)
if self.menu_export_id == 0:
  #g_warning ("cannot export menu: %s", error->message);
  #g_error_free (error);
  return



def on_name_lost (self, connection, name):
    if self.actions_export_id:
      connection.unexport_action_group(self.actions_export_id)
if (self.menu_export_id):
  connection.unexport_menu_model(self.menu_export_id)



if name == 'main':
logger.debug('Login-Helper: Initializing Login Helper Indicator')
res_gtk = Gtk.init(sys.argv)
  indicator = LoginHelperIndicator('com.canonical.indicator.loginhelper', '/com/canonical/indicator/loginhelper')
logger.debug ('Login-Helper: Res_gtk: ' + str(res_gtk))
  res_own = Gio.bus_own_name(Gio.BusType.SESSION,
                indicator.dbus_name,
                Gio.BusNameOwnerFlags.NONE,
                indicator.on_bus_acquired,
                None,
                indicator.on_name_lost)
  logger.debug ('Login-Helper: Res_own: ' + str(res_own))
Gtk.main()
exit(0)

Answer 2

System Indicator Service

Well, it is really simpler then I expected. There is no specific API for it. Because it is just a GSimpleActionGroup & with corresponding GMenu's exported through DBus then Unity is told about their presence using declaration file with same name put in /usr/share/unity/indicators/. No need for any other library.

Here a very small C language example:

Get a copy of tests/indicator-test-service.c from libindicator source

apt-get source libindicator
cp libindicator-*/tests/indicator-test-service.c .
cp libindicator-*/tests/com.canonical.indicator.test*

. indicator-test-service.c no changes

**#include <gio/gio.h>
typedef struct
{
  GSimpleActionGroup actions;
  GMenu menu;
guint actions_export_id;
  guint menu_export_id;
} IndicatorTestService;
static void
bus_acquired (GDBusConnection connection,
              const gchar     name,
              gpointer         user_data)
{
  IndicatorTestService indicator = user_data;
  GError error = NULL;
indicator->actions_export_id = g_dbus_connection_export_action_group (connection,
                                                                        "/com/canonical/indicator/test",
                                                                        G_ACTION_GROUP (indicator->actions),
                                                                        &error);
  if (indicator->actions_export_id == 0)
    {
      g_warning ("cannot export action group: %s", error->message);
      g_error_free (error);
      return;
    }
indicator->menu_export_id = g_dbus_connection_export_menu_model (connection,
                                                                   "/com/canonical/indicator/test/desktop",
                                                                   G_MENU_MODEL (indicator->menu),
                                                                   &error);
  if (indicator->menu_export_id == 0)
    {
      g_warning ("cannot export menu: %s", error->message);
      g_error_free (error);
      return;
    }
}
static void
name_lost (GDBusConnection connection,
           const gchar     name,
           gpointer         user_data)
{
  IndicatorTestService *indicator = user_data;
if (indicator->actions_export_id)
    g_dbus_connection_unexport_action_group (connection, indicator->actions_export_id);
if (indicator->menu_export_id)
    g_dbus_connection_unexport_menu_model (connection, indicator->menu_export_id);
}
static void
activate_show (GSimpleAction action,
               GVariant      parameter,
               gpointer       user_data)
{
  g_message ("showing");
}
int
main (int argc, char *argv)
{
  IndicatorTestService indicator = { 0 };
  GMenuItem item;
  GMenu submenu;
  GActionEntry entries[] = {
    { "_header", NULL, NULL, "{'label': <'Test'>,"
                             " 'icon': <'indicator-test'>,"
                             " 'accessible-desc': <'Test indicator'> }", NULL },
    { "show", activate_show, NULL, NULL, NULL }
  };
  GMainLoop loop;
indicator.actions = g_simple_action_group_new ();
  g_simple_action_group_add_entries (indicator.actions, entries, G_N_ELEMENTS (entries), NULL);
submenu = g_menu_new ();
  g_menu_append (submenu, "Show", "indicator.show");
  item = g_menu_item_new (NULL, "indicator._header");
  g_menu_item_set_attribute (item, "x-canonical-type", "s", "com.canonical.indicator.root");
  g_menu_item_set_submenu (item, G_MENU_MODEL (submenu));
  indicator.menu = g_menu_new ();
  g_menu_append_item (indicator.menu, item);
g_bus_own_name (G_BUS_TYPE_SESSION,
                  "com.canonical.indicator.test",
                  G_BUS_NAME_OWNER_FLAGS_NONE,
                  bus_acquired,
                  NULL,
                  name_lost,
                  &indicator,
                  NULL);
loop = g_main_loop_new (NULL, FALSE);
  g_main_loop_run (loop);
g_object_unref (submenu);
  g_object_unref (item);
  g_object_unref (indicator.actions);
  g_object_unref (indicator.menu);
  g_object_unref (loop);
return 0;
}**

com.canonical.indicator.test modified to add lock & greeter mode

[Indicator Service]
Name=indicator-test
ObjectPath=/com/canonical/indicator/test
[desktop]
ObjectPath=/com/canonical/indicator/test/desktop
[desktop_greeter]
ObjectPath=/com/canonical/indicator/test/desktop
[desktop_lockscreen]
ObjectPath=/com/canonical/indicator/test/desktop

com.canonical.indicator.test.service remove .in postfix from filename and change the executable path

[D-BUS Service]
Name=com.canonical.indicator.test
Exec=/usr/lib/x86_64-linux-gnu/indicator-test/indicator-test-service

Compile it

gcc -o indicator-test-service indicator-test-service.c pkg-config --cflags --libs gtk+-3.0

Manual Installation

sudo su
mkdir /usr/lib/x86_64-linux-gnu/indicator-test/
cp indicator-test-service /usr/lib/x86_64-linux-gnu/indicator-test/
cp com.canonical.indicator.test /usr/share/unity/indicators/
cp com.canonical.indicator.test.service /usr/share/dbus-1/services/

Configuration for Greeter, override the default indicators list

90_unity-greeter.gschema.override

com.canonical.unity-greeter]
indicators=['ug-accessibility', 'com.canonical.indicator.keyboard', 'com.canonical.indicator.session', 'com.canonical.indicator.datetime', 'com.canonical.indicator.power', 'com.canonical.indicator.sound', 'com.canonical.indicator.test', 'application']

Install

cp 90_unity-greeter.gschema.override /usr/share/glib-2.0/schemas/
glib-compile-schemas /usr/share/glib-2.0/schemas/

Test

sudo service lightdm restart

Notes DBus service is troublesome, if you want user to be able to close application anytime. It is better to use autostart instead, like default indicators do.

I have uploaded ready files here:

https://github.com/sneetsher/mysystemindicator_minimum

and a modified copy here:

https://github.com/sneetsher/mysystemindicator

Where I have tried different menu for different mode. It could be installed and tested quickly.

This seems too simple and can be easily ported to any other language that have support for GIO Gnome lib (including DBus). As I'm looking for python, I may add it later.

References: libindicator README: The indicator service file format https://bazaar.launchpad.net/~indicator-applet-developers/libindicator/trunk.14.04/view/head:/README
