ISO Linux 6.03 error booting Live USB

Question

When booting from a Live USB I'm getting an ISO Linux Error immediately after BIOS POST (Basic Input Output System Power On Self Test):

ISOLINUX 6.03 20160618 EHDD Copyright (c) 1994-2014 H. Peter Anvin et al

Loading bootlogo...
bootlogo: invalid file format
Error setting up gfxboot
boot:

 (repeats 2 times)

Loading bootlogo...
bootlogo: invalid file format
Error setting up gfxboot
boot:

Hard power-off.

I'm able to create a 4GB FAT32 Partition and 28GB NTFS partition with 512 Byte sectors but after using Startup Disk Creator or DD on the ISO file I end up with 2048 byte sectors that confuses gparted.

Although it's a UEFI machine CSM (Legacy BIOS boot) is enabled in BIOS.

Machine specifics:

Dell Inspiron 17R 7720 SE
Intel I7 3630QM 2.4 GHz, 3.4 GHz Turboboost
8 GB DDR3 RAM
nVidia GeForce GT650M w/2GB RAM
Full size 240 GB Sata 3 SSD, Full size Sata 2 500 GB HDD
Mini PCIe mSata 128 GB Sata 3 SSD
Optical CD/DVD Caddy
Four USB 3.0 ports, one of them powered when machine is off.
Current BIOS A17
Ubuntu Intel Microcode via Additional Software Drivers
EUFI and Secure boot turned off

Update 1

$ lsblk -f
NAME   FSTYPE  LABEL             UUID                                 MOUNTPOINT
sda
├─sda1 ntfs    System Reserved   FAC07A55C07A1859
├─sda2 ntfs    KSX_Win7          2EBA8445BA840B91
├─sda3 ntfs    KSX Win 8.1       8C3ADAA93ADA8F96
└─sda4
sdb
├─sdb1 ntfs    ST9_Win7          C2F48A08F489FF43
├─sdb2 ext4    ST9_Linux         bf80a37d-dfad-4df1-b8b1-a67ef2a9ab66
└─sdb3 swap                      f7ca38bd-ccf1-4d61-b54b-017b1493d1b4
sdc
├─sdc2 ntfs    F9m_Win7          5824BF4E76D68BE2
├─sdc3 ext4    F9m_Linux         d02dc21d-dcb2-478e-9f7d-9a3331931de4 /
└─sdc4 swap                      09606fe6-c131-43fc-9ebc-be05a96e1c1d [SWAP]
sdd    iso9660 Ubuntu 17.04 amd64
│                                2017-01-07-08-08-00-00
├─sdd1 iso9660 Ubuntu 17.04 amd64
│                                2017-01-07-08-08-00-00               /media/ric
└─sdd2 vfat    Ubuntu 17.04 amd64
                                 21E3-6362
sr0

Update 2

Tried creating boot USB using SYSLINUX and same error as above occurs except "SYSLINUX" appears instead of "ISOLINUX" and only one line appears (the very top line).

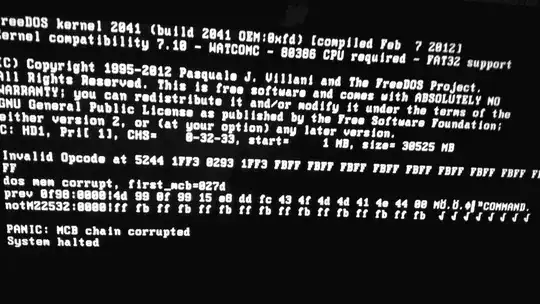

Then using Rufus under Windows 8.1 created a boot USB with FreeDOS as the OS and this much more detailed error appeared:

Try to switch to Legacy mode instead of EUFI. This will help and turn ON security boot. — Jaffer Wilson, Jan 11 '17 at 07:22
@JafferWilson Thank you for your comment. Legacy mode (aka CSM) is turned on. — WinEunuuchs2Unix, Jan 11 '17 at 11:52
@sudodus 1) The ISO comes from Daily Build. First Attempt Dec 31, 2016. Second attempt Jan 3rd, 2017. Always same error screen on boot. 2) Startup Disk Creator version is Ubuntu 16.04. 3) Cloning ISO via dd gives the same screen. 4) lsblk -f output added to question. 5) It doesn't boot :( — WinEunuuchs2Unix, Jan 11 '17 at 11:56
I think it is (was?) a bug, but it is strange, that you are affected by that isolinux bug and I am not. Maybe the bug was fixed during the three days between 2017-01-07 and 2017-01-10. Please try with the current iso file. — sudodus, Jan 11 '17 at 12:17
Or is it a bug in Dell's BIOS/UEFI system, that the CSM alias BIOS emulator is faulty? — sudodus, Jan 11 '17 at 12:22
I think in the past for DVD RW I had to change ISO Linux to SYS Linux somehow but that was years ago and when trying to find google links again last week I came up empty handed. — WinEunuuchs2Unix, Jan 11 '17 at 12:43
@sudodus I'm leaning towards the bug idea. I've added a screen shot of errors using a bootable USB 3 using Rufus. My next suite of testing will be on a USB 2 flash drive. I'll also dig around for known problems with this machine and CSM USB Booting. — WinEunuuchs2Unix, Jan 13 '17 at 00:52
I think it is a bug too, not in Ubuntu but in the BIOS/UEFI software of the computer. Cloning is very reliable, and I think Rufus is a reliable tool too. Have you checked if there is an updated version of the BIOS for your computer model? Does the computer boot from a DVD disk? — sudodus, Jan 13 '17 at 05:37
@sudodus Yes I'm good at keeping BIOS (and other chipsets) updated. A17 is current version. Yes it boots from DVD that's been the only way of installing stuff to date. BOOT HAS BEEN FIXED as per my answer below. Hopefully you can add that link to your toolbox :) — WinEunuuchs2Unix, Jan 15 '17 at 17:22

WinEunuuchs2Unix · Accepted Answer · 2017-01-16T11:20:41.833

2

After googling many websites with Dell Inspiron USB Boot Error I found a link to these instructions (pendrivelinux.com - BIOS USB booting tips and tricks) which tells us to unplug all other USB devices:

Port 1 had extra power cable for charging USB devices next to laptop.
Port 2 had USB bootable flash drive that didn't work.
Port 3 had Logitech unifying receiver for K800 backlit keyboard and MX Pro mouse
Port 5 had 10 foot USB 3 cable to 7 port powered hub containing printer, UPS (Uninterruptable Power Supply) communications, cell phone and bluetooth headphone charging.

Unplugging everything except the USB Flash drive made USB boot successful:

edited Jan 16 '17 at 11:20

answered Jan 15 '17 at 16:58

WinEunuuchs2Unix

102,282

Congratulations and thanks for sharing your solution :-) This is a good general advice - to unplug all other USB devices. I have read and written about it before, but I have neither read nor written about it recently. I'm glad you found it, and solved the problem with this Dell. – sudodus Jan 15 '17 at 17:29
Thank you. When reading the link what clued me in was it said (para-phrasing): "we've even seen an iPod plugged in caused boot to fail". Immediately I thought of my cellphone and unplugged everything. I only wish I found this site years ago and saved hours of time waiting and listening to DVD chug along. Most of all thank you for your quick and generous offers of assistance! – WinEunuuchs2Unix Jan 15 '17 at 17:35

score 1 · Answer 2 · answered Jan 11 '17 at 07:14

1

Replying to "Oh BTW still haven't got 17.04 live USB working yet on BIOS format on UEFI machine":

Yesterday (2017-01-10) I zsynced the daily Ubuntu Zesty amd64, cloned it with mkusb-dus (with dd under the hood).

It works live in my 3-4 year old Toshiba laptop in BIOS alias CSM mode (InsydeH2O rev. 3.7, System BIOS version 6.10 EC version 6.00). The screenshot illustrates this particular case:

It works in UEFI mode too in that computer.
It works in my newest computer, an Intel NUC6i3SYH in both BIOS and UEFI modes (Intel Visual BIOS SYSKLi35.86A.0024.2015.1027.2142)

I think what you see in gparted is caused by a bug in gparted. It does not understand hybrid iso files and the system they create in USB drives. But

sudo lsblk -fm

will show the partitions and ISO 9660 file system in a correct way.

So let us find out, if the problem is due to the iso file or the computer (your Dell). Cloning with dd is very reliable (when done correctly with or without help of a 'safety belt' shellscript).

answered Jan 11 '17 at 07:14

sudodus

46,324
5
88
152

It's nice to know 17.04 works for you. The installer is based on 16.10 so I had high confidence it does work. Making a USB 16.04 live USB results in same errors for me. Indeed the only live USB I've ever been able to make was in Sparky Linux a few years ago. – WinEunuuchs2Unix Jan 11 '17 at 11:59
@everybody: It would be interesting to find out if there are problems in BIOS mode in other computers too - If you, who are reading this, have problems to boot zesty (17.04) in BIOS mode, please tell us. – sudodus Jan 11 '17 at 12:30
@ sudodus Just to be clear it's not a problem booting Zesty (17.04) in BIOS mode. it's a problem booting an installation USB downloaded from Ubuntu website. It applies to 16.04 and 14.04 as well. I should have pointed out the laptop has four USB 3.0 ports one of them powered when machine is off.. – WinEunuuchs2Unix Jan 11 '17 at 12:40
Now I don't understand. Which Ubuntu website has installation USBs to be downloaded, that would be different from the iso files? – sudodus Jan 11 '17 at 13:02
I meant ISO that can be burned to optical or flashed to USB... – WinEunuuchs2Unix Jan 11 '17 at 13:16
Yes, and both should work. But what does not work for you? From which iso file, using which tool to clone it to the USB pendrive? Would it be possible for me to test that (of course not run your computer, but do all the other steps the same way)? - Is the problem that your computer does not boot from USB in BIOS mode? But it boots from USB in UEFI mode, and it boots from DVD in both modes? – sudodus Jan 11 '17 at 13:23
I'll write a more thorough comment when I get home but both methods many ISOs and I've never booted UEFI. – WinEunuuchs2Unix Jan 11 '17 at 13:31
Let us continue this discussion in chat. – sudodus Jan 11 '17 at 20:43
