Mac canadian multilingual keyboard on ubuntu

Question

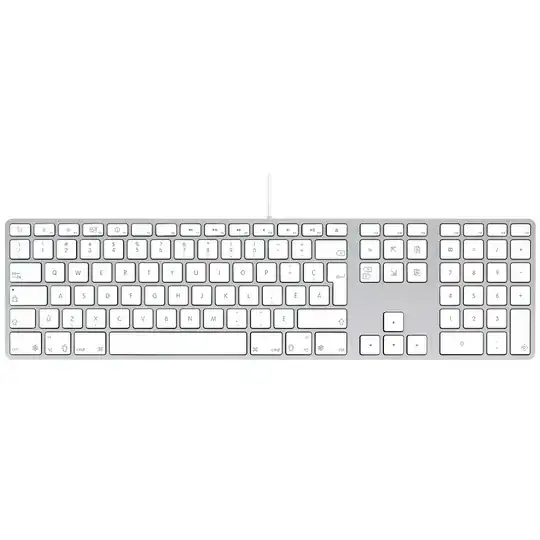

I am using the Mac Canadian Multilingual keyboard with Ubuntu 16, shown below. The Canadian Multilingual text entry option works almost fine, but I have the following problems.

The left alt and right alt are swapped. I have to press on the right alt key in order to write the brackets { and } (that makes coding and writing in Latex very difficult).
The keys for ù and / are also swapped.

How can I fix this? I tried everything suggested in the related posts on this site (and elsewhere), to no avail.

I tried using an English configuration for my keyboard, only switching to French when necessary, but this makes me waste too much time.

Note: This problem is very serious for French-Canadian Ubuntu users. I must keep my MacBook air next to my Ubuntu desktop to write emails and to write in Latex.

Attempted fixes:

Using xev, I found that the left alt is keycode 64, registered as Alt_L, right alt is keycode 108, registered as ISO_Level3_Shift. The command xmodmap -e "keycode 64 = ISO_Level3_Shift" makes the left alt key unresponsive whitout fixing the problem.
In the file '/usr/share/X11/xkb/symbols/ca', I swapped the content (what is in the brackets) between the two following lines:
```
key <TLDE>  { [     slash,  backslash,           bar ]  };
key <LSGT>  { [    ugrave,     Ugrave ]     };
```
While in the file '/usr/share/X11/xkb/symbols/level3' I swapped all appearances of LALT and RALT.

The answer here should help you work out how to remap your keys. Ensure you're using instruction that use xkb and not xmodmap. — Delorean, Mar 24 '17 at 20:40
Thanks for the link. I found the file '/usr/share/X11/xkb/symbols/ca' that contains the canadian Multilingual keyboard layout; I'll try to modify it. — Olivier, Mar 24 '17 at 20:50
@Dorian: There is no need to edit package owned files in this case. Please see my answer. — Gunnar Hjalmarsson, Mar 24 '17 at 22:33
take a look at https://superuser.com/a/1188622/685512 -- does the bug workaround help? — quixotic, Mar 24 '17 at 22:36
@quixotic: That shouldn't be needed on Ubuntu due to the apple:badmap option. — Gunnar Hjalmarsson, Mar 24 '17 at 22:40
@GunnarHjalmarsson except xkb options won't affect virtual console keymaps, that workaround does. better to understand the root cause when possible. — quixotic, Mar 24 '17 at 22:42
@quixotic: It's effective on console if you edit /etc/default/keyboard. Please see man keyboard. Also, on my 16.10 there is no /sys/module/hid_apple folder. — Gunnar Hjalmarsson, Mar 24 '17 at 22:51
@GunnarHjalmarsson Was just showing a way. Pretty sure there won't be an update for a while anyways since the project's been frozen for a while now. — Delorean, Mar 25 '17 at 02:17
@Dorian: xkeyboard-config upstream is updated continuously, and it's more likely than not that an upgrade to a new Ubuntu version means an update of xkb-data. But yes, a stable release update of xkb-data is unlikely to happen. — Gunnar Hjalmarsson, Mar 25 '17 at 22:13

score 3 · Accepted Answer · answered Mar 24 '17 at 22:17

3

Editing files owned by the xkb-data package should be avoided, since the changes will be lost if/when the package is updated. And in this case there is a more straightforward way to achieve what you want.

So, the first thing I suggest is that you reset the changes you made by running this command:

sudo apt install --reinstall xkb-data

Then you can use XKB options. To change the behavior in the current session you can run this command:

setxkbmap -option "lv3:lalt_switch,lv3:ralt_alt,apple:badmap"

If that does what you want, you can make the changes persistent by opening the file /etc/default/keyboard for editing and change this line:

XKBOPTIONS=""

to

XKBOPTIONS="lv3:lalt_switch,lv3:ralt_alt,apple:badmap"

answered Mar 24 '17 at 22:17

Gunnar Hjalmarsson

33,540
3
64
94

awesome, didn't know about apple:badmap. – quixotic Mar 24 '17 at 22:34
@quixotic: No, unfortunately that option is somewhat hidden. It works in Debian/Ubuntu because of a patch, but not on distros which use the upstream XKB unmodified. – Gunnar Hjalmarsson Mar 24 '17 at 22:37
@GunnarHjalmarsson What if I have 2 keyboards layouts and I switch between them. The swap still occurs. How can I configure only the french canadian one? – Mike Gleason jr Couturier Jan 20 '20 at 15:42
@MikeGleasonjrCouturier: Don't know. OTOH, the need to swap ought to be there irrespective of which layout is active (even if you may not consider those keys important enoght when using the other layout). – Gunnar Hjalmarsson Jan 20 '20 at 17:37

Olivier · Answer 2 · 2017-03-24T23:47:02.427

0

Bad approach (see the other answer)

To swap the left and right alts, access the file '/usr/share/X11/xkb/symbols/level3':

sudo gedit /usr/share/X11/xkb/symbols/level3

and swap the character strings <LALT> and <RALT> everywhere they appear.

To swap the keys corresponding to 'ù' and '/' (for the Canadian Multilingual layout), access the file '/usr/share/X11/xkb/symbols/ca':

sudo gedit /usr/share/X11/xkb/symbols/ca

and swap the contents (what is between the brackets '[' and ']') of the keys <TLDE> and <LSGT>

edited Mar 24 '17 at 23:47

answered Mar 24 '17 at 21:38

Olivier

113
7

editing these files is unnecessary, especially not the "swap this everywhere" you recommend for level3. please don't recommend this. xkb options can be used to override any troublesome keys. – quixotic Mar 24 '17 at 22:25
