Accessing encrypted boot drive as extra drive

Question

I created an encrypted 2TB boot drive using the standard method from an Ubuntu 16.04 LiveUSB.

I am trying to access that 2TB drive from another system (also Ubuntu 16.04.3) which is running from 1TB encrypted boot drive. When I connect the extra (2TB) drive, I am prompted for the password, which I enter correctly, and I get no other message. Everything seems fine.

I look in Nautilus and all I see is the little 511MB boot section of the 2TB drive.

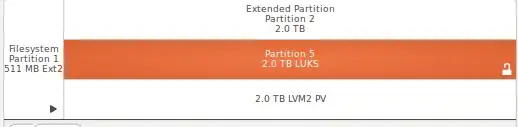

I open Disks and I see the 2TB drive and the graphic shows the following:

The problem is that I do not seem to have access to the large 2TB partition, just to the little pre-boot area.

From the image, you can see the lock is unlocked. It says it is unlocked. It says the device is /dev/sdb5.

I tried to mount it using:

mount /dev/sdb5

I got an error:

mount: can't find /dev/sdb5 in /etc/fstab

So, I tried

mount /2tb /dev/sdb5

I got:

mount: only root can do that

So, I tried

sudo mount /2tb /dev/sdb5

I got:

special device /2tb does not exist

As you might guess, I am quite new to Ubuntu. I might be missing something quite simple but it does seem it should be easier to access this drive.

What can I do access the main partition on this 2TB drive?

You have used wrong order, please try with sudo mount /dev/sdb5 /2tb — pa4080, Sep 06 '17 at 07:20
@pa4080 I get the error: mount: mount point /2tb does not exist — John, Sep 06 '17 at 07:31
In this case, you should create it. Good place is /mnt directory (or /media), so run sudo mkdir /mnt/2tb, and then sudo mount /dev/sdb5 /mnt/2tb. — pa4080, Sep 06 '17 at 07:33

score 3 · Accepted Answer · edited Jun 12 '20 at 14:37

3

How to Mount an Encrypted Partition at Startup via GUI

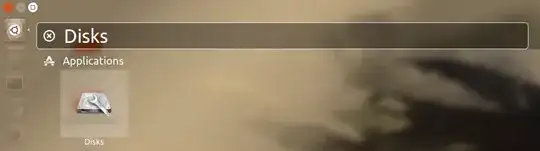

1. Connect your device and run Disks:

2. Select the device, select the encrypted partition. Don't unlock it yet. From the 'Gears' menu select Edit Encryption Options:

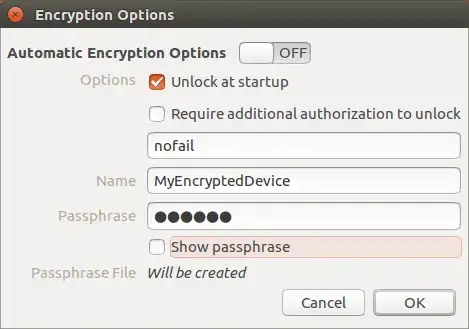

3. Into the dialogue box Encryption Options:

Set Automatic Encryption Options to OFF
Tick the option Unlock at startup.
Enter your Passphrase.
Then press OK (and authenticate yourself into the next dialogue).

4. Click on the 'Padlock' icon to unlock your encrypted device:

5. Now select the partition (the inner part) and from the 'Gears' menu select Edit Mount Options:

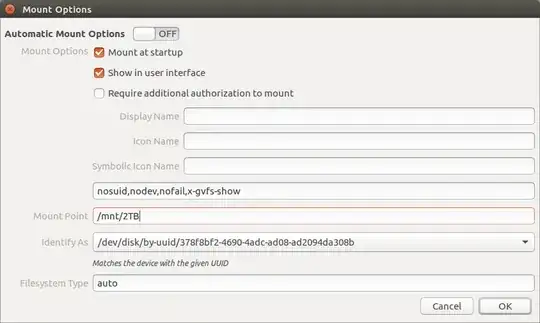

6. Into the dialogue box Mount Options:

Set Automatic Mount Options to OFF
Tick the option Mount at startup.
Tick the option Show in user interface, if you want.
Change the Mount Point.
Then press OK (and authenticate yourself into the next dialogue).

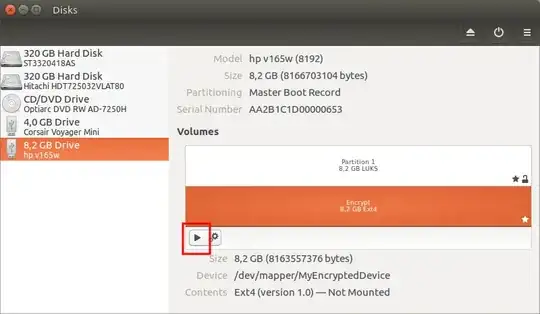

7. Now press the 'Play' button to mount your device:

8. Close Disks and restart the system to check the result.

That's it!

edited Jun 12 '20 at 14:37

Community

1

answered Sep 06 '17 at 09:08

pa4080

29,831

Let us continue this discussion in chat. – pa4080 Sep 07 '17 at 08:00
1

This answer works perfectly, unless you are trying to access an encrypted boot drive from another encrypted boot drive. If you are trying to do that, you must rename the volume group of one of the two encrypted boot drives. You can see how to do that here. – John Sep 07 '17 at 15:39
Few other topics relevant to Encrypted LVM: [1], [2], [3]. – pa4080 Sep 07 '17 at 17:29
Hi, @John. I was outside for few hours :) You are welcome! I'm happy to help. – pa4080 Sep 07 '17 at 17:30
After step 3 I got the error "Failed to open file '/etc/crypttab': No such file or directory (g-file-error-quark, 4)". It turns out this can be fixed by doing: sudo touch /etc/crypttab – Dmitry Kamenetsky Mar 19 '20 at 00:46
HELP, I cannot do step 5, because for me "Edit Mount Options" is always greyed out! – Dmitry Kamenetsky Mar 19 '20 at 01:09

score 1 · Answer 2 · answered Sep 06 '17 at 08:02

You report having been asked for /dev/sdb5 password and entered it without error message or being asked for a second time. If that worked, but you partition just didn't get mounted, then there should be a new device in /dev/mapper/, like a symlink /dev/mapper/sdb5_crypt pointing to /dev/dm-0. If so, you can use sudo mount /dev/mapper/sdb5_crypt /mnt/2tb to make your data accessable. I'm not doing these things often enough to know by heart, wether or when Ubuntu 16.04 mounts work automatically, when they work halfway automatically and when Ubuntu doesn't do anything automatically.

If /dev/dm-0 or similar doesn't exist, you might want to read the answers in Mount encrypted volumes from command line?, which I won't repeat here.

TomTomTom

score 0 · Answer 3 · answered Sep 06 '17 at 07:20

0

the first attempt didn't provide a location so ubuntu searched /etc/fstab for where to mount it & reported it's not there correctly.

your later attempted mount commands tried to load '/2tb' device onto directory '/dev/sdb5' which IS A SPECIAL DEVICE - the error message is correct.... ie. your mount params [here] are in the wrong order.

answered Sep 06 '17 at 07:20

guiverc

30,396

which means the directory /2tb hasn't been created yet. you cmount to an existing directory; so sudo mkdir /2tb & it'll work :) – guiverc Sep 06 '17 at 07:35
