How to create animated GIF images of a screencast?

Question

I've seen animated GIF images of screen casts (like the one below) promoted a few times on this site as a way to improve answers.

What toolchain is being used to create these? Is there a program that does this automagically, or are people taking screencasts, converting them into a series of static frames, and then creating the GIF images?

Answer 1

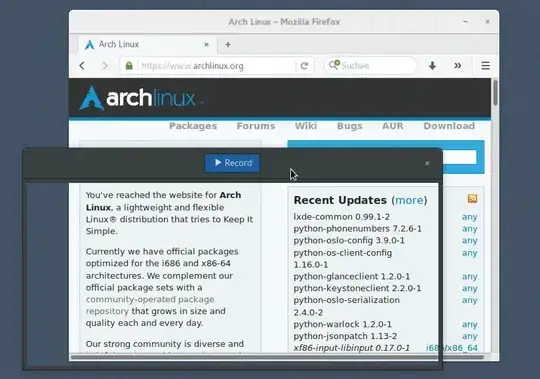

Peek

Is a new application that lets you easily record GIF's from your screen.

Anyway, keep in mind that GIF's have a very limited color palette so it's not a very good idea to use them.

Since Ubuntu 18.10 you can install Peek directly.

sudo apt install peek

For older versions of Ubuntu, you can install the latest versions of Peek from its PPA.

sudo add-apt-repository ppa:peek-developers/stable
sudo apt update
sudo apt install peek

Find more information in the GitHub repo.

Answer 2

Byzanz

Best software I ever found to record GIF screencasts is Byzanz.

Byzanz is great because it records directly to GIF, the quality and FPS is impressive while maintaining the size of the files to a minimal.

Installation

Byzanz is now available from the universe repository:

sudo apt-get install byzanz

Usage

When it is installed you can run it in a terminal.

This is a small example I did just now with

byzanz-record --duration=15 --x=200 --y=300 --width=700 --height=400 out.gif

Answer 3

First install this:

sudo apt-get install imagemagick mplayer gtk-recordmydesktop

those are the required stuff, ImageMagick, MPlayer and Desktop Recorder. Then use Desktop Recorder to capture a portion of the screen/application to use as the screencast. After the Desktop Recorder has saved the recording into an OGV video, MPlayer will be used to capture JPEG screenshots, saving them into the 'output' directory.

On a terminal:

mplayer -ao null <video file name> -vo jpeg:outdir=output

Use ImageMagick to convert the screenshots into an animated gifs.

convert output/* output.gif

you can optimize the screenshots this way:

convert output.gif -fuzz 10% -layers Optimize optimised.gif

Answer 4

byzanz

Overview

This answer contains three shell scripts:

1. byzanz-record-window - To select a window for recording.
2. byzanz-record-region - To select a part of the screen for recording.
3. A simple GUI front-end for 1.

Introduction

Thanks Bruno Pereira for introducing me to byzanz! It's quite useful for creating GIF animations. The colours may be off in some cases, but the file size makes up for it. Example: 40 seconds, 3.7Mb.

Usage

Save one/all of the following two scripts in a folder within your $PATH. Here's an example on using the first script to make a screencast of a specific window.

1. Run byzanz-record-window 30 -c output.gif
2. Go to the window (alt-tab) you want to capture. Click on it.
3. Wait 10 seconds (hard-coded in $DELAY), in which you prepare for recording.
4. After the beep (defined in the beep function), byzanz will start.
5. After 30 seconds (that's the meaning of 30 in step 1), byzanz ends. A beep will be broadcast again.

I included the -c flag in byzanz-record-window to illustrate that any arguments to my shell script are appended to byzanz-record itself. The -c flag tells byzanz to also include the cursor in the screencast.
See man byzanz-record or byzanz-record --help for more details.

byzanz-record-window

#!/bin/bash

# Delay before starting
DELAY=10

# Sound notification to let one know when recording is about to start (and ends)
beep() {
    paplay /usr/share/sounds/KDE-Im-Irc-Event.ogg &
}

# Duration and output file
if [ $# -gt 0 ]; then
    D="--duration=$@"
else
    echo Default recording duration 10s to /tmp/recorded.gif
    D="--duration=10 /tmp/recorded.gif"
fi
XWININFO=$(xwininfo)
read X <<< $(awk -F: '/Absolute upper-left X/{print $2}' <<< "$XWININFO")
read Y <<< $(awk -F: '/Absolute upper-left Y/{print $2}' <<< "$XWININFO")
read W <<< $(awk -F: '/Width/{print $2}' <<< "$XWININFO")
read H <<< $(awk -F: '/Height/{print $2}' <<< "$XWININFO")

echo Delaying $DELAY seconds. After that, byzanz will start
for (( i=$DELAY; i>0; --i )) ; do
    echo $i
    sleep 1
done

beep
byzanz-record --verbose --delay=0 --x=$X --y=$Y --width=$W --height=$H $D
beep

byzanz-record-region

Dependency: xrectsel from xrectsel. Clone the repository and run make to get the executable. (If it protests there is no makefile, run ./bootstrap and the ./configure before running `make).

#!/bin/bash

# Delay before starting
DELAY=10

# Sound notification to let one know when recording is about to start (and ends)
beep() {
    paplay /usr/share/sounds/KDE-Im-Irc-Event.ogg &
}

# Duration and output file
if [ $# -gt 0 ]; then
    D="--duration=$@"
else
    echo Default recording duration 10s to /tmp/recorded.gif
    D="--duration=10 /tmp/recorded.gif"
fi

# xrectsel from https://github.com/lolilolicon/xrectsel
ARGUMENTS=$(xrectsel "--x=%x --y=%y --width=%w --height=%h") || exit -1

echo Delaying $DELAY seconds. After that, byzanz will start
for (( i=$DELAY; i>0; --i )) ; do
    echo $i
    sleep 1
done
beep
byzanz-record --verbose --delay=0 ${ARGUMENTS} $D
beep

Gui version of byzanz-record-window

Script with a simple GUI dialogue:

#!/bin/bash

# AUTHOR:   (c) Rob W 2012, modified by MHC (https://askubuntu.com/users/81372/mhc)
# NAME:     GIFRecord 0.1
# DESCRIPTION:  A script to record GIF screencasts.
# LICENSE:  GNU GPL v3 (http://www.gnu.org/licenses/gpl.html)
# DEPENDENCIES:   byzanz,gdialog,notify-send (install via sudo add-apt-repository ppa:fossfreedom/byzanz; sudo apt-get update && sudo apt-get install byzanz gdialog notify-osd)

# Time and date
TIME=$(date +"%Y-%m-%d_%H%M%S")

# Delay before starting
DELAY=10

# Standard screencast folder
FOLDER="$HOME/Pictures"

# Default recording duration
DEFDUR=10

# Sound notification to let one know when recording is about to start (and ends)
beep() {
    paplay /usr/share/sounds/freedesktop/stereo/message-new-instant.oga &
}

# Custom recording duration as set by user
USERDUR=$(gdialog --title "Duration?" --inputbox "Please enter the screencast duration in seconds" 200 100 2>&1)

# Duration and output file
if [ $USERDUR -gt 0 ]; then
    D=$USERDUR
else
    D=$DEFDUR
fi

# Window geometry
XWININFO=$(xwininfo)
read X < <(awk -F: '/Absolute upper-left X/{print $2}' <<< "$XWININFO")
read Y < <(awk -F: '/Absolute upper-left Y/{print $2}' <<< "$XWININFO")
read W < <(awk -F: '/Width/{print $2}' <<< "$XWININFO")
read H < <(awk -F: '/Height/{print $2}' <<< "$XWININFO")

# Notify the user of recording time and delay
notify-send "GIFRecorder" "Recording duration set to $D seconds. Recording will start in $DELAY seconds."

#Actual recording
sleep $DELAY
beep
byzanz-record -c --verbose --delay=0 --duration=$D --x=$X --y=$Y --width=$W --height=$H "$FOLDER/GIFrecord_$TIME.gif"
beep

# Notify the user of end of recording.
notify-send "GIFRecorder" "Screencast saved to $FOLDER/GIFrecord_$TIME.gif"

See also:

• byzanz-gui by rhcarvalho
• This other answer, another improved version of Rob W's byzanz-record-region.

Answer 5

ffmpeg (install)

One of the best tools I use is ffmpeg. It can take most video from a screencast tool such as kazam and convert it to another format.

Install this from software-center - it is automatically installed if you install the excellent ubuntu-restricted-extras package.

Kazam can output in the video formats mp4 or webm. Generally you get better results outputting in mp4 format.

Example GIF making syntax

The basic syntax to convert video to gif is:

ffmpeg -i [inputvideo_filename] -pix_fmt rgb24 [output.gif]

GIFs converted - especially those with a standard 25/29 frame-per-second can be very large. For example - a 800Kb webm 15-second video at 25fps can output to 435 MB!

You can reduce this by a number of methods:

Framerate

Use the option -r [frame-per-second]. For example

ffmpeg -i Untitled_Screencast.webm -r 1 -pix_fmt rgb24 out.gif

Size reduced from 435 MB to 19 MB

File-size limit

Use the option -fs [filesize]. For example

ffmpeg -i Untitled_Screencast.webm -fs 5000k -pix_fmt rgb24 out.gif

Note: This is an approximate output file size so the size can be slightly bigger than specified.

Size of output video

Use the option -s [widthxheight]. For example

ffmpeg -i Untitled_Screencast.webm -s 320x200 -pix_fmt rgb24 out.gif

This reduced the example 1366x768 video size down to 26 MB

Loop forever

Sometimes you might want the GIF to loop forever.

Use the option -loop_output 0. For example

ffmpeg -i Untitled_Screencast.webm -loop_output 0 -pix_fmt rgb24 out.gif

Further optimise and shrink

If you use imagemagick convert with a fuzz factor between 3% and 10% then you can dramatically reduce the image size

convert output.gif -fuzz 3% -layers Optimize finalgif.gif

Finally

Combine some of these options to reduce to something manageable for Ask Ubuntu.

ffmpeg -i Untitled_Screencast.webm -loop_output 0 -r 5 -s 320x200 -pix_fmt rgb24 out.gif

Followed by

convert output.gif -fuzz 8% -layers Optimize finalgif.gif

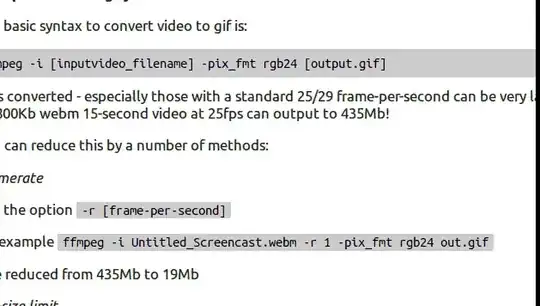

Example

Answer 6

Silentcast

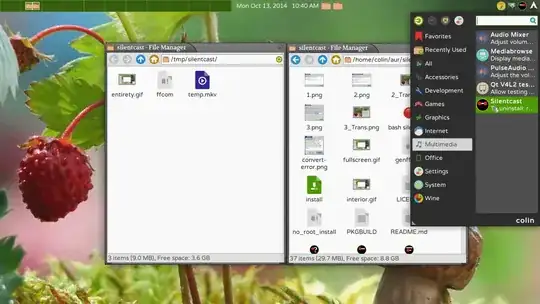

Silentcast is another great GUI-based tool for creating animated .gif images. Its features include:

• 4 recording modes:

  1. Entire screen

  2. Inside window

  3. Window with decoration

  4. Custom selection

• 5 output formats:

  1. .gif

  2. .mp4

  3. .webm

  4. .png (frames)

  5. .mkv

• No installation necessary (portable)

• Custom working directory

• Custom fps

Installation

If you want a regular installation and are running a supported version of Ubuntu you can install Silentcast by PPA:

sudo add-apt-repository ppa:sethj/silentcast
sudo apt-get update
sudo apt-get install silentcast

If you aren't running a supported version of Ubuntu (you should really upgrade!) you will need to download the latest version from the GitHub page and manually satisfy the dependencies (you can procure yad and ffmpeg from here and here respectively) or, if you are running a slightly more recent version such as 13.10 you could try downloading the .deb directly.

If you're using Gnome you might want to install the Topicons extension to make stopping Silentcast easier.

Usage

Start Silentcast from your desktop environment's gui or run the silentcast command in a terminal. Pick your settings and follow the on-screen prompts. When you're done recording you will be presented with a dialog for optimizing the final output by removing a certain number of frames.

For more in depth usage guidelines take a look at the README, either the online GitHub version or the local version stored in /usr/share/doc/silentcast with zless or your favourite editor.

Notes:

Silentcast is still in the development stage and although it is quite stable you might encounter some bugs. If you do please report them on the project's GitHub issues tracker. If you have trouble installing from the PPA and are running a supported version of Ubuntu leave a comment below or contact the maintainer (me) on Launchpad.

Answer 7

There are all sorts of complicated and well-working (presumably) ways to do this listed here. However, I've never wanted to go through that process before nor since. So, I simply use an online converter which suits my needs the few times I need to do so. I've used this site:

http://ezgif.com/video-to-gif

It's not my site and I'm not affiliated with them in any way. They're just the one in my bookmarks and there are many more.

Answer 8

I created record-gif.sh, an improved version of Rob W's byzanz-record-region:

A lame GUI for byzanz, improved the user experience (mouse-selectable area, record progress bar, replay-able recording).

• set recording duration ;
• set save_as destination ;
• select –with the mouse– the area to record ;
• create a script to replay recording (cf. $HOME/record.again).

Install

I also created an installation script

curl --location https://git.io/record-gif.sh | bash -

Answer 9

1. Install these 3 packages: imagemagick mplayer gtk-recordmydesktop
2. Run Desktop Recorder to capture a portion of the screen/application to use as the screencast
3. Download ogv2gif.sh from https://github.com/nicolas-raoul/ogv2gif
4. Run: ./ogv2gif.sh yourscreencast.ogv
5. The GIF file will be put in the same directory

100% inspired from maniat1k's answer.

Answer 10

Ok, so in order to also capture mouse clicks, the only thing I found was key-mon (via the README of screenkey):

• https://code.google.com/archive/p/key-mon https://github.com/critiqjo/key-mon
• sudo apt-get install key-mon

Then I:

• Start key-mon
• Use xrectsel to get the screen coordinates put into a byzanz command
• Run the byzanz command

... and it looks sort of like this:

Note that key-mon --visible_click would draw a circle around the mouse pointer upon mouse click - which I would prefer, but in Ubuntu 14.04.5 LTS this is somewhat broken, as this circle does not appear and disappear fast enough in order to correctly illustrate the clicks (i.e. mouse presses and releases).

Answer 11

If you want to get even fancier, you can use a more sophisticated method than animated gifs using HTMl5 canvas screencasting. The x11-canvas-screencast project will create an html5 canvas animated screen capture.

You may have seen some famous examples of this tech on the Sublime Text website. x11-canvas-screencast takes this method a step further by incorporating tracking of the mouse cursor. Here's a demo of what x11-canvas-screencast produces

The result is better than an animated gif since it's not limited to the number of colors it has and it takes less bandwidth.

Answer 12

The most simple screen recorder in 2023 is the gnome default screen recorder. It can record selected rectangle or full screen. But it cannot record the specific window. There is also no option to change the storage location of the recorded video. You have to use dconf to change the setting /org/gnome/gnome-screenshot/last-save-directory

The vokoscreen-NG is still my main screen capture tool in 2023 so far due to its rich feature.

in 2023, most of the suggested software are either abandoned long time ago, or lack of ability to just record a section of the screen.

• kazam is not maintained since 6 years ago. (you can still see it in ubuntu ppa, but very buggy)
• byzanz also stopped 6 years ago.
• peek: It is officially abandoned.
• system default: can only record full screen and all screens you have.

The only recent simple screencast app I can find in official repo is vokoscreen-NG. It is very actively developed and working towards wayland.

Then there is monster: obs-studio

Answer 13

I recently created combined version of scripts already posted here.
Basically, it allows you to record screen region, but with simple GUI.

Thanks for Rob W for providing those cool scripts

Here's the code (or gist if you like):

#!/bin/bash

#Records selected screen region, with GUI

#This is combined version of GIF recording scripts, that can be found here: https://askubuntu.com/questions/107726/how-to-create-animated-gif-images-of-a-screencast
#Thanks to Rob W, and the other author (unmentioned), for creating this lovely scripts

#I do not own any rights to code I didn't write
#                                     ~Jacajack

DELAY=5 #Delay before starting
DEFDUR=10 #Default recording duration
TIME=$(date +"%Y-%m-%d_%H%M%S") #Timestamp
FOLDER="$HOME/Pictures/Byzanz" #Default output directory

#Sound notification to let one know when recording is about to start (and ends)
beep() {
    paplay /usr/share/sounds/freedesktop/stereo/message-new-instant.oga &
}

#Custom recording duration as set by user
USERDUR=$(gdialog --title "Duration?" --inputbox "Please enter the screencast duration in seconds" 200 100 2>&1)

#Duration and output file
if [ $USERDUR -gt 0 ]; then
    D=$USERDUR
else
    D=$DEFDUR
fi

#Get coordinates using xrectsel from https://github.com/lolilolicon/xrectsel
REGION=$(xrectsel "--x=%x --y=%y --width=%w --height=%h") || exit -1

notify-send "GIFRecorder" "Recording duration set to $D seconds. Recording will start in $DELAY seconds."

for (( i=$DELAY; i>0; --i )) ; do
    sleep 1
done

#Record
beep
byzanz-record --cursor --verbose --delay=0 ${REGION} --duration=$D "$FOLDER/byzanz-record-region-$TIME.gif"
beep

notify-send "GIFRecorder" "Screencast saved to $FOLDER/byzanz-record-region-$TIME.gif"

Answer 14

If you also want visible recordings of mouse clicks or key strokes, then screenkey is your best bet: https://github.com/wavexx/screenkey

Answer 15

Use gtk-recordmydesktop and ffmpeg :

apt-get install gtk-recordmydesktop ffmpeg

Run RecordMyDesktop capture a portion of the screen/application to use as the screencast :

gtk-recordmydesktop

Create ogv2gif.sh with following content :

INPUT_FILE=$1
FPS=15
WIDTH=320
TEMP_FILE_PATH="~/tmp.png"
ffmpeg -i $INPUT_FILE -vf fps=$FPS,scale=$WIDTH:-1:flags=lanczos,palettegen $TEMP_FILE_PATH
ffmpeg -i $INPUT_FILE -i $TEMP_FILE_PATH -loop 0 -filter_complex "fps=$FPS,scale=$WIDTH:-1:flags=lanczos[x];[x][1:v]paletteuse" $INPUT_FILE.gif
rm $TEMP_FILE_PATH

Use it :

./ogv2gif.sh yourscreencast.ogv

References :

• https://gist.github.com/fedir/56aeddde59571402a0d94f78eb6c7a5c
• https://unix.stackexchange.com/questions/35282/convert-ogv-video-to-gif-animation

Answer 16

I test all above method, found the most simple one is:

1. use gtk-recordmydesktop and key-mon to get a ogv
2. ffmpeg -i xx.ogv xx.gif <-- without any parameter.

the fps is original, and the gif size is less than ogv file.

Answer 17

This is the approach that I follow to record high-quality GIFs.

• Record the screen with a screen recorder such as Obs.
• Edit the video if necessary.
• Convert the video to a GIF using GifTuna.
