I am trying to have multiple USB installers for different OSs, like Debian, Ubuntu, windows, etc. I have an external 2T HDD (Seagate Expansion+) with a single partition in it. What I want to do is to make a few little partitions in it, and burn the different images to those partitions, without affecting the 50 GB of data I have in the main partition, which I can't move anywhere. I just want something like this:

Drive        Size      Bootable

/dev/sdb1    1988 GB

/dev/sdb2    4 GB       *

/dev/sdb3    4 GB       *
/dev/sdb4    4 GB       *

With the 4 GB partitions being bootable OS installers, and without formatting the big partition, because there's stuff there I can't move out that I'd like to keep

My operative systems: Grub dual-boot:

  1. ParrotSec OS 4.9 amd64
  2. Windows 7 Home Premium

I have tried:

Multibootusb -> has bugs and doesn't start

dd command -> doesn't support multiboot

Unetbootin -> doesn't support multiboot

YUMI -> it just gives me access to the live part of the ISO, losing the installer, which is part of my plan

Edit: Nevermind, YUMI did the trick, I just accidentally downloaded a live version only of ubuntu instead of the installer

Edit 2: For future reference I'd like to mention that I currently use Ventoy, which allows you to just install the tool on the drive, and then just throw ISO files in it. It will show a GRUB-like menu and allow you to choose why ISO file to boot

Ciro García
  • 411
  • Many folks use a VM like Qemu/KVM for that. Then you don't need separate partitions at all. Just a directory full of .iso files. – user535733 May 25 '20 at 20:26
  • 2
    What is your question? Where does Ubuntu come in? – mikewhatever May 25 '20 at 20:26
  • There are a few ways to burn multiple ISOs to a USB stick, can google it. Gparted can shrink your data partition and then make as many small partitions as you like if the drive is GPT. Can usually only have 4 primary partitions if it is MBR. Probably should format the small partitions as Fat32. – crip659 May 25 '20 at 20:47
  • answering to mikewhatever:My computer is running windows 7 and parrot sec os (debian based) and what i want is to have my hdd as a multiple os installer I can carry around, because sometimes I get to the point of having to reinstall on of my os. I also have an ubuntu server that has LVM cipher and I want to take it away. – Ciro García May 26 '20 at 00:34
  • answering to user535733: I'd like to be able to carry around the installers, like if I had multiple usb sticks with a single iso in each one. – Ciro García May 26 '20 at 00:35
  • answering to crip659: i have been googling ways to do that for hours, and i havent found any way of doing that. I have tried etcher (formats everything) i'd try YUMI but i cant find the place to download it, (ik it in pendrivelinux, but it doesnt say download anywhere) multibootusb is broken bc of a bug in its script, and another 2 apps i cant install bc their repos are not available for parrot os. – Ciro García May 26 '20 at 00:38
  • 1
    MultiBootUSB, (Ubuntu), worked for me today. You can download YUMI here: https://www.pendrivelinux.com/yumi-multiboot-usb-creator/ or you could try a hand made multiboot using the link in my answer. – C.S.Cameron May 26 '20 at 04:26
  • 1
    See also: https://askubuntu.com/questions/1025656/how-do-i-boot-an-iso-file-from-my-drive-using-grub2-on-uefi-machines You can use grub 2.04 but need rmmod tpm in boot stanza. https://bugs.launchpad.net/ubuntu/+source/grub2/+bug/1851311 – oldfred May 26 '20 at 14:28
  • To start with, which Linux distro have you installed (Ubuntu server, Ubuntu desktop, Kubuntu, Lubuntu, Xubuntu, Ubuntu MATE, Mint, et al.), & which release number? Different releases have different tools for us to recommend. Please click [edit] & add that to your question, so all facts we need are in the question. Please don't use Add Comment, since that's our one-way channel to you. All facts about your PC should go in the Question with [edit] as this is a Q&A site, not a general forum, so things work differently here. – K7AAY May 26 '20 at 17:12
  • @Ciro García: UNetbootin will make a Multi Boot USB. You need to create the multiple partitions first and then install to them. See: https://askubuntu.com/questions/962536/partitioning-a-usb-and-making-separate-bootable-drives/963731#963731. YUMI is much easier. – C.S.Cameron May 27 '20 at 10:39
  • @CiroGarcía, Yes, today many people prefer Ventoy for the task of multibooting live systems and/or installers. -- But I prefer to get (download) current iso files and clone them to an SSD connected via USB. (The content of a multiboot USB drive will soon get old ...) – sudodus Jan 14 '24 at 17:53

2 Answers2

2

MultiBoot using External USB HDD

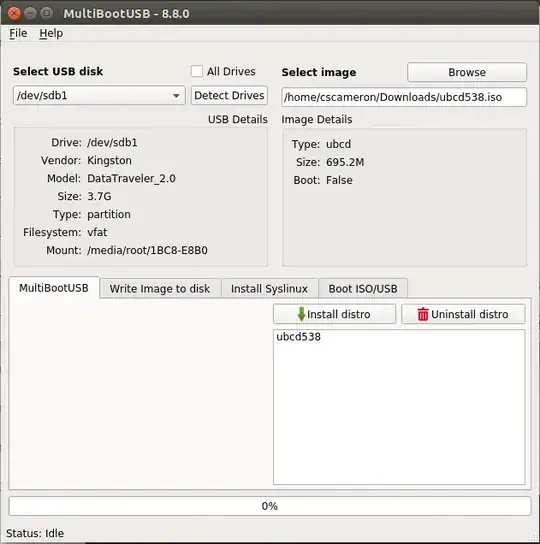

You can use MultiBootUSB, http://multibootusb.org/, to install multiple OS to a specific partition on an HDD or each OS to it's own partition. Multiple persistence is also possible.

enter image description here

MultiBootUSB 9.2 is working with Ubuntu up to 18.04. It will boot 'buntu 20.04 ISO's placed in the /multibootusb/iso/ folder. Persistence and UEFI boot is working with Linux versions but not with the Windows version of MBUSB.

It is easy to just install GRUB to a hard drive and use that to boot ISO files. The following was written for USB but also works on HDD: How do I create a Multiboot USB that is compatible with both BIOS and UEFI?

C.S.Cameron
  • 19,519
  • I have tried multiboot and i get a few errors trying to start the program – Ciro García May 27 '20 at 05:13
  • Are you using Linux or Windows MBUSB, Linux is best. What version? 9.2 can boot many OS by dropping the ISO's into the /multibootusb/iso/ folder. Do you need persistence for any of the OS or are they all installers only? Personally I would just install grub to the USB to boot ISO's kept on a NTFS partition, (so they are accessible to Windows and Linux). This can be done by adding a bios_grub partition and a boot,esp partition. The ISO's can be kept in a folder on the existing NTFS partition if there is one. You are only allowed 4 partitions if you are using a msdos partition table. – C.S.Cameron May 27 '20 at 05:38
  • The app worked on first try, but after that, it didn't work anymore. Console said NameError: name 'config' is not defined – Carlos Pinzón Oct 03 '20 at 20:31
1

YUMI works just fine. I can install anything i want in a single partition and choose whatever I want at start-up.

Ciro García
  • 411
  • I am glad to see that YUMI-UEFI 0.0.2.0 has become YUMI-BIOS/UEFI.0.0.2.2. It worked for me with Ubuntu 20.04 both BIOS mode and UEFI mode. However I had to change the label of casper-rw to writable in order to make persistence work. I also tried it with Clonezilla, GParted, and UBCD. They all worked. I am disappointed with the latest MultiBootUSB. Thank you for posting your solution (+10). – C.S.Cameron May 27 '20 at 10:28
