I have Cable/fibre named VIVA BROADBAND (not sure, as the provider says it is Fibre, but provider is actually a television cable provider) internet which uses PPPoE/Russia PPPoE username password authentication and provides dynamic addresses.

ISP gave me an username and password. Note that it is not DSL/ADSL. I used to use router (non ADSL router), that just connects me to WAN using PPPoE username and password, and IP addresses are assigned dynamically.

In Windows, I can do this easily by creating a new connection using broadband option PPPoE, key in username and password, and get connected.

How can I connect this cable PPPoE in Ubuntu? All other questions in SU and AskUbuntu tells about only DSL connections.

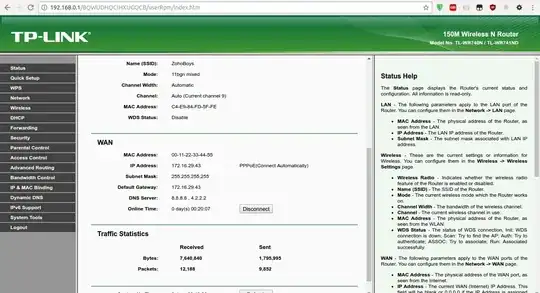

Update: This is how I connect using my router: https://i.stack.imgur.com/UT4GB.jpg,

enter image description here

How can I achieve the same without the router (directly connecting the LAN Ethernet cable to my Ubuntu machine)?

Pierre.Vriens
  • 1,137
verstappen_doodle
  • 123

2 Answers2

1

I believe you can set up your non-DSL PPPoE using networkmanagerin your gui or you can use pppoeconf

further details can be found with the command man ppoeconf

Elder Geek
  • 36,023
  • 25
  • 98
  • 183
Gabriel Moreno
  • 21
0

The media shouldn't make a difference whether cable or fibre. For Dual Access PPPOE (AKA Russia PPOE) your first connection is to the providers resources and then a PPTP connection is setup to the Internet as discussed [here] [0] Since you have a router that does this in firmware, I would continue to use that as it allows for more flexibility in your LAN and is the simplest solution.

Dual access means a two-staged connection with the Internet service provider (uplink):

connection to the provider through Ethernet-interface to assign an IP-address,routes, etc. with DHCP or with static settings.

•connection with the use of the protocol group like “point-to-point”, (PPPoE, PPTP,L2TP) on the second stage Connection to the provider network is carried out through Ethernet-port ; an IP-address,routes, name servers are assigned to the client by the provider.

Upon completion of the first stage of connection a client gets access to the internal resources of the provider, but not to the Internet.

On the second stage the connection through PPTP or L2TP protocols is established with the assignment of a new default route, new name servers and a new IP-address on the new interface ( named pppX). Upon completion of the second stage a client obtains access to the Internet.

this should give you some idea of what your router is doing for you behind the scenes. Your ISP should be able to provide you with all the information required to connect. In effect you need a PPTP connection setup over your initial connection to your ISP. If your initial connection isn't stable enough for you to have time to setup the PPTP connection over it, I would discuss the problem with the ISP.

As an aside, many cable internet providers use a registered MAC address to determine network access. (This is how it works in my neck of the woods) You can likely locate the routers MAC address on the Status page under WAN as shown in Figure 4-1 Router Status on or about page 17 of your router manual. Then you can change your Ethernet cards Mac address as decribed here.

Community
  • 1
Elder Geek
  • 36,023
  • 25
  • 98
  • 183
  • I could enter only the username. Password field is non editable for me (not greyed out, but not clickable). – verstappen_doodle Oct 05 '16 at 21:07
  • Yes. I've been around several internet connectivity procedures, and used most of the connectivity types. This one is so odd. – verstappen_doodle Oct 05 '16 at 21:17
  • My bad, the password is actually available by selecting the option in the right. Entered the password. Still, Save is greyed out. It requires a gateway. And, I'm sure, this is a cable/FTTH broadband. No such VPN needed actually. Here's what I get http://imgur.com/a/BP0bD – verstappen_doodle Oct 05 '16 at 21:22
  • @unix_root see updated Answer – Elder Geek Oct 05 '16 at 21:25
  • Ouch. You misunderstood. I can connect to Internet through router (that's the image I've shared in the question). I want to connect this without a router. I just have a LAN ethernet cable. I can do this in Windows machine (explained in question). Wanna do the same in Ubuntu. – verstappen_doodle Oct 05 '16 at 21:27
  • I get internet though: LAN Ethernet cable ---> Wireless Router ---> Wirelessly connected to Ubuntu machine. What I need is: LAN Ethernet cable ---> Ubuntu machine. – verstappen_doodle Oct 05 '16 at 21:29
  • But, if not, how did you suggest me to enter my router gateway address in the gateway field? Or, am I missing something here? O.O – verstappen_doodle Oct 05 '16 at 21:31
  • As per my router, it doesn't make a secondary connection (Dual Access/Russia PPPoE). See my first image attachment in the question. It's normal PPPoE connection, not dual access. – verstappen_doodle Oct 12 '16 at 21:07
  • http://imgur.com/a/pIIir states clearly at the top PPPoE/Russia PPPoE hence the confusion. Hopefully someone else can assist you with eliminating your router from your environment. Best of luck. – Elder Geek Oct 12 '16 at 21:19
  • That's the common option. "Secondary connection" in the image states clearly that Dual Access Russia PPPoE is disabled. – verstappen_doodle Nov 12 '16 at 12:35
